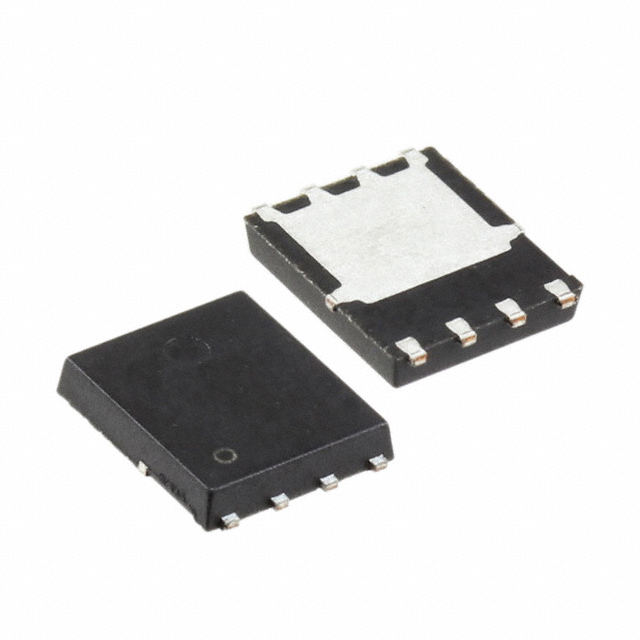

The FDWS9509L-F085 is a P-Channel, Logic Level MOSFET from the POWERTRENCH family, manufactured by On Semiconductor. It features a maximum drain-to-source voltage of -40V and continuous drain current of -65A at 25°C case temperature. The on-resistance is a maximum 8.0mOhm at 10V gate drive, with a typical value of 6.3mOhm.
Designed for automotive power management, this device is AEC-Q101 qualified and PPAP capable. It includes UIS capability and wettable flanks for automatic optical inspection. The gate threshold voltage is 3V maximum at 250µA, and the total gate charge is 67nC at 10V.
The MOSFET is available in a surface mount 8-PowerTDFN package (supplier device package 8-DFN 5.1x6.3mm) and is suitable for applications requiring high efficiency and compact design.
The maximum drain-to-source voltage is -40 V.
The continuous drain current is -65 A at case temperature 25°C.
The maximum on-resistance is 8 mOhm at 65 A and 10 V gate voltage.
The operating temperature range is -55°C to 175°C (junction).
It is available in a surface mount 8-PowerTDFN package (8-DFN 5.1x6.3mm).
The datasheet indicates the device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant. However, compliance status from database records is unverified.
