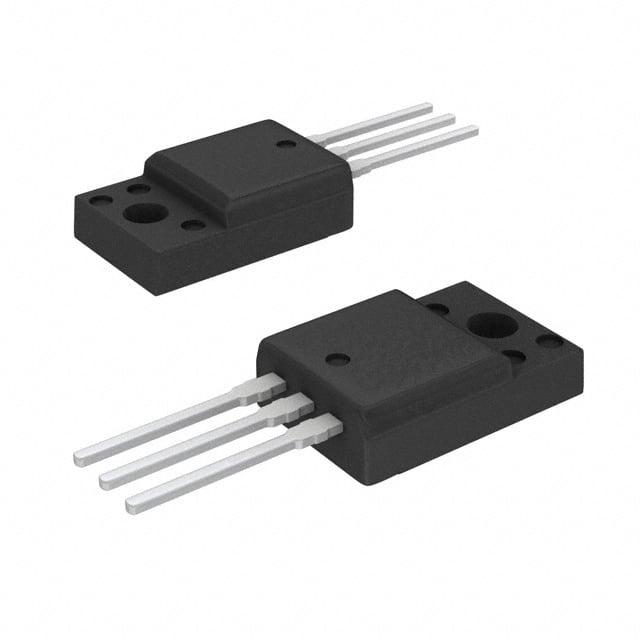

FDPF5N50T N-channel MOSFET with 500V drain-source voltage and 5A continuous drain current, in a TO-220F-3 through-hole package.
Mfr Part #:

FDPF5N50T

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
N-channel MOSFET with 500V drain-source voltage and 5A continuous drain current, in a TO-220F-3 through-hole package.
✓ Total Stock: 1,827 pcs
$ Price Range: $0.40

FDPF5N50T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
1,827 pcs
On Request
1827 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDPF5N50T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDPF5N50T Description

Short technical summary and product information.

The FDPF5N50T is an N-channel enhancement-mode MOSFET manufactured by On Semiconductor. It features a maximum drain-source voltage of 500V and a continuous drain current of 5A at case temperature. The device has a typical on-resistance of 1.4 Ohms at 2.5A and 10V gate drive. Gate charge is 15 nC at 10V, and input capacitance is 640 pF at 25V.



This MOSFET is designed for high-voltage switching applications such as power supplies, inverters, and motor control. With a maximum power dissipation of 28W and an operating temperature range of -55°C to 150°C, it can handle demanding environments. The through-hole TO-220F-3 package provides robust thermal performance and ease of mounting.



The part is RoHS compliant (unverified) and has a moisture sensitivity level of 1 (unlimited). It is a direct replacement for the Fairchild semiconductor part under the ON Semiconductor portfolio.

FDPF5N50T Quick Information

Product Type: N-Channel MOSFET
Canonical Name: FDPF5N50T MOSFET
Subcategory: N-Channel MOSFET

FDPF5N50T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDPF5N50T Estimated Pricing

Qty Low High
1,827+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDPF5N50T Features

  • 500V maximum drain-source voltage.
  • 5A continuous drain current rating.
  • 1.4 Ohm on-resistance at 10V gate drive.
  • TO-220F-3 through-hole package.
  • Operating temperature range -55°C to 150°C.

FDPF5N50T Applications

  • Ideal for high-voltage switching power supplies.
  • Used in AC-DC converters and inverters.
  • Suitable for motor control circuits.
  • Applicable in LED lighting drivers.
  • For general purpose switching applications.

FDPF5N50T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FDPF5N50T?

500V.

What is the continuous drain current rating?

5A at case temperature.

What is the package type?

TO-220F-3 (full pack, through-hole).

What is the operating temperature range?

-55°C to 150°C (junction temperature).

Is the FDPF5N50T RoHS compliant?

RoHS3 compliant (unverified from datasheet).

What is the on-resistance at 10V gate drive?

1.4 Ohm maximum at 2.5A, 10V.

What is the gate charge?

15 nC maximum at 10V gate-source voltage.
