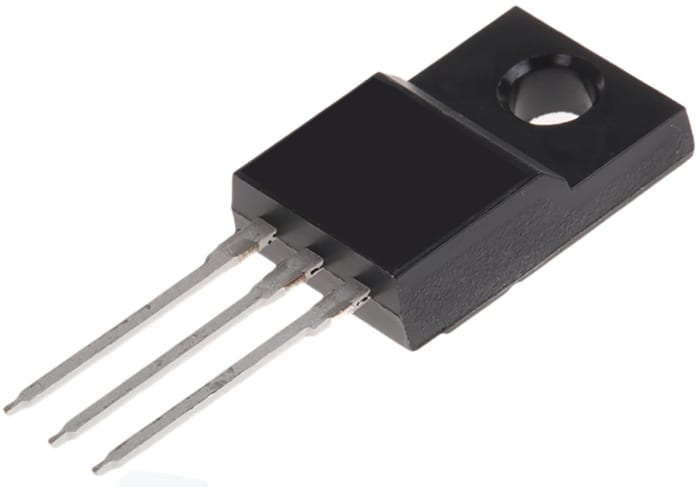

The FDPF55N06 is an N-Channel MOSFET from onsemi's UniFET family, designed for high-voltage switching applications. It is rated for a maximum drain-to-source voltage of 60 V and continuous drain current of 55 A at a case temperature of 25°C, with pulsed drain current capability up to 220 A. The device features a low typical on-resistance of 22 mΩ at a 10 V gate drive and a typical gate charge of 30 nC, contributing to efficient switching performance.
The MOSFET offers a maximum power dissipation of 48 W at 25°C case temperature and operates over a junction temperature range of -55°C to +150°C. It also provides single-pulsed avalanche energy rating of 480 mJ, making it suitable for robust power switching circuits. The gate threshold voltage is specified at 4 V maximum, and the input capacitance is 1510 pF at 25 V drain-source voltage.
This through-hole device comes in a TO-220-3 full-pack package (TO-220F-3) and is supplied in tubes with 1000 units per tube. It is intended for use in switching power converters, power factor correction circuits, flat panel display television power supplies, ATX power supplies, and electronic lamp ballasts.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $1.34 | $1.34 |
| 100+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (VDSS) is 60 V.
The continuous drain current is 55 A at a case temperature of 25°C, and 34.8 A at 100°C.
The RDS(on) is 22 mΩ maximum (also typical) at VGS = 10 V and ID = 27.5 A.
The junction operating temperature range is -55°C to +150°C.
It comes in a TO-220-3 Full Pack (TO-220F-3) through-hole package, supplied in tubes of 1000 units.
The database indicates RoHS3 compliance, but this status is unverified and should be confirmed with the manufacturer.
