Mfr Part #:

FDPF51N25YDTU

N-Channel MOSFET with 250V drain-source voltage rating and 51A continuous drain current. Features low gate charge (55nC) and low on-resistance (60mOhm max).

✓ Total Stock: 3,200 pcs

$ Price Range: $1.57 - $5.22

FDPF51N25YDTU Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	3,200 pcs On Request	3200 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FDPF51N25YDTU Description

Short technical summary and product information.

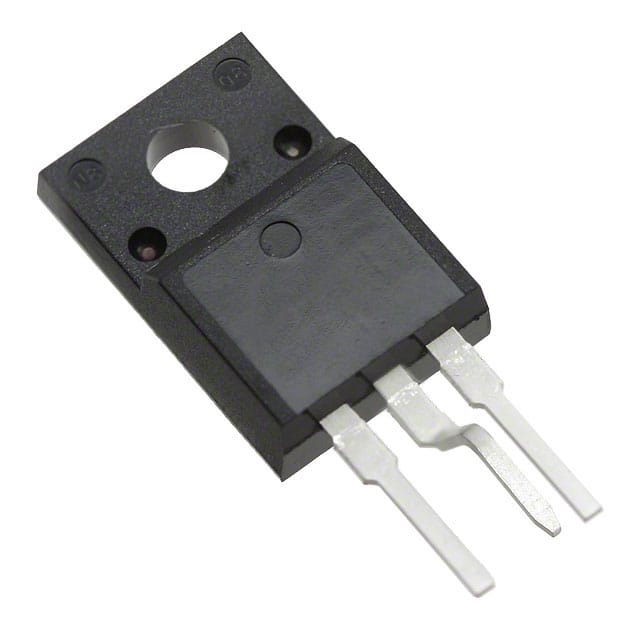

The FDPF51N25YDTU is an N-Channel MOSFET from On Semiconductor, part of the UniFET family. It is designed for high-voltage switching applications with a drain-source voltage rating of 250V and continuous drain current of 51A at 25°C case temperature. The device features a low maximum on-resistance of 60mOhm at 10V gate drive, with a typical value of 48mOhm. Gate charge is typically 55nC (max 70nC), enabling fast switching performance. Input capacitance is 3410pF typical, and reverse transfer capacitance is 63pF typical. The MOSFET is avalanche rated with a single pulse avalanche energy of 1111mJ and repetitive avalanche energy of 32mJ. It offers an insulation voltage of 2500V RMS from leads to heat sink. The device is housed in a TO-220-3 Full Pack package with formed leads (TO-220F-3), suitable for through-hole mounting. Operating temperature range is -55°C to 150°C. Typical applications include PDP TV power supplies, lighting, uninterruptible power supplies, and AC-DC power converters.

FDPF51N25YDTU Quick Information

Product Type: MOSFET

Series: UniFET

Canonical Name: FDPF51N25YDTU - N-Channel MOSFET, 250V, 51A, TO-220 Full Pack

Subcategory: Single N-Channel Power MOSFET

FDPF51N25YDTU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FDPF51N25YDTU Estimated Pricing

Qty	Low	High
1+	$5.22	$5.22
10+	$3.42	$3.42
100+	$1.84	$1.84
800+	$1.61	$1.61
5,600+	$1.57	$1.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDPF51N25YDTU Features

N-Channel MOSFET rated for 250V drain-source voltage.
Continuous drain current of 51A at 25°C case temperature.
Low on-resistance of 60mOhm max at 10V gate drive.
Low gate charge of 70nC max for fast switching.
TO-220 Full Pack package with 2500V RMS insulation.

FDPF51N25YDTU Applications

Suitable for PDP TV power supplies.
Used in AC-DC power converter circuits.
Ideal for uninterruptible power supply (UPS) designs.
Applicable in electronic lamp ballasts.

FDPF51N25YDTU FAQs

7 frequently asked questions generated from this part’s specifications.

What is the drain-source voltage rating of the FDPF51N25YDTU?

250V.

What is the maximum continuous drain current?

51A at 25°C case temperature.

What is the typical on-resistance?

48mOhm at 10V gate drive, 25.5A drain current.

What is the operating temperature range?

-55°C to 150°C.

What package does this MOSFET come in?

TO-220-3 Full Pack with formed leads (TO-220F-3).

Is it RoHS compliant?

RoHS3 compliant (unverified, from database).

What is the maximum gate charge?

70nC at 10V gate voltage.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	On Semiconductor
Current	51 A
Drain to Source Voltage (Vdss)	250 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	70 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	3410 pF
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature	-55°C to 150°C
Power Dissipation (Max)	38 W
Rds On (Max) @ Id, Vgs	60mOhm @ 25.5A, 10V
Storage Temperature	-55°C ~ 150°C
Supplier Device Package	TO-220F-3 (Y-Forming)
Tape & Reel	No
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±30 V
Vgs(th) (Max) @ Id	5 V
