| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94,020 pcs
|
94020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,467 pcs
|
2467 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,145 pcs
|
1145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 1803 | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDPF33N25T is an N-Channel MOSFET from On Semiconductor's UniFET family, designed for high-voltage switching applications. It offers a drain-source voltage of 250V and a continuous drain current of 33A at 25°C case temperature, with a maximum on-resistance of 94 mOhm at 10V gate drive. Key dynamic characteristics include a typical gate charge of 36.8 nC, a typical reverse transfer capacitance of 39 pF, and a maximum input capacitance of 2135 pF at 25V drain-source. The device is 100% avalanche tested, with a single pulse avalanche energy rating of 918 mJ.
This MOSFET is optimized for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power supplies, ATX power supplies, and electronic lamp ballasts. Its low gate charge and low Crss enable efficient switching performance, while the high avalanche energy strength provides robustness in demanding environments.

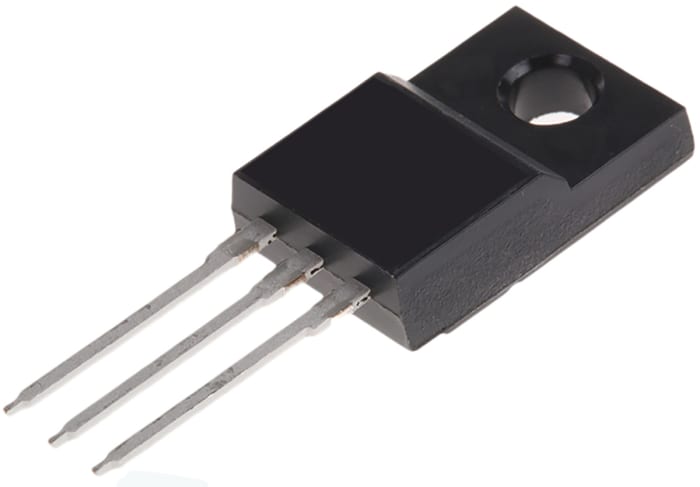

The part is offered in a TO-220 Fullpack through-hole package (supplier device package TO-220F-3), with three leads and an isolated mounting surface. It operates over a junction temperature range of -55°C to +150°C and has a maximum power dissipation of 37W at 25°C case temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.32 | $3.32 |
| 10+ | $1.67 | $1.67 |
| 100+ | $1.50 | $1.50 |
| 500+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is 250V.
It is available in a TO-220-3 Full Pack package (supplier device package TO-220F-3) with through-hole mounting.
The operating junction temperature range is -55°C to +150°C.
The part is listed as RoHS3 compliant, but this information is unverified.
The maximum drain-source on-resistance (Rds(on)) is 94 mOhm at ID=16.5A and VGS=10V.
The typical gate charge (Qg) at VGS=10V is 36.8 nC, with a maximum of 48 nC.
The continuous drain current (ID) at Tc=25°C is 33A.
