FDPF190N15A

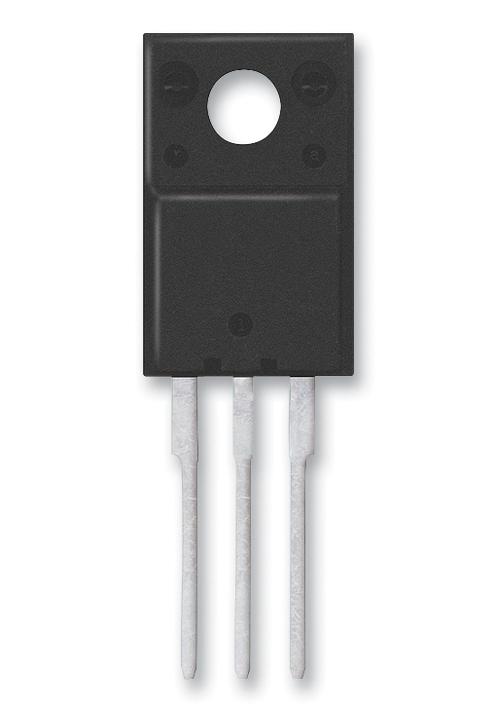

N-Channel MOSFET with 150V drain-source voltage rating, 27.4A continuous drain current, and 19mOhm maximum on-resistance in a TO-220F-3 through-hole package.

✓ Total Stock: 4,000 pcs

$ Price Range: $2.13 - $4.16

FDPF190N15A Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1,000 pcs On Request	1000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FDPF190N15A Description

Short technical summary and product information.

The FDPF190N15A from ON Semiconductor is an N-Channel MOSFET designed for high-efficiency power management. It features a 150V drain-source voltage rating, 27.4A continuous drain current at 25°C, and a maximum on-resistance of 19mOhm at Vgs=10V. This device is built using ON Semiconductor's advanced PowerTrench technology, which minimizes on-state resistance while delivering superior switching performance.

Key electrical characteristics include a typical gate charge of 31nC and low input capacitance (2685pF max at Vds=25V), enabling fast switching speeds and reduced drive losses. The device is capable of handling pulsed drain currents up to 110A and single-pulse avalanche energy of 261mJ.

The FDPF190N15A is offered in a TO-220-3 Full Pack (TO-220F-3) through-hole package, which provides excellent thermal performance and robust mechanical mounting. It is commonly used in consumer appliances, LED TVs, synchronous rectification for ATX/server power supplies, UPS systems, and micro solar inverters. The device is rated for operation from -55°C to 150°C junction temperature.

FDPF190N15A Quick Information

Product Type: MOSFET - Single N-Channel

Series: POWERTRENCH

Canonical Name: N-Channel MOSFET 150V 27.4A 19mOhm TO-220F-3

Subcategory: Single N-Channel MOSFET

FDPF190N15A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FDPF190N15A Estimated Pricing

Qty	Low	High
1+	$4.16	$4.16
10+	$2.13	$2.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDPF190N15A Features

150V drain-source voltage rating.
27.4A continuous drain current at 25°C.
19mOhm maximum on-resistance at 10V gate drive.
Low gate charge and input capacitance.
TO-220-3 Full Pack through-hole package.

FDPF190N15A Applications

Consumer appliances and LED TVs.
Synchronous rectification for PSUs.
Uninterruptible power supplies.
Micro solar inverters.
High-efficiency switching converters.

FDPF190N15A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of FDPF190N15A?

150V.

What is the package type and mounting style?

The device is in a TO-220-3 Full Pack (TO-220F-3) package with through-hole mounting.

What is the operating temperature range?

-55°C to +150°C junction temperature.

Is the FDPF190N15A RoHS compliant?

Yes, according to the ON Semiconductor datasheet, it is RoHS compliant.

What is the maximum gate charge?

39 nC at Vgs = 10V.

What is the maximum power dissipation?

33W at case temperature 25°C.

What is the maximum continuous drain current at 25°C?

27.4A.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	On Semiconductor
Current	27.4 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	39 nC
Input Capacitance (Ciss) (Max) @ Vds	2685 pF
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	33 W
Rds On (Max) @ Id, Vgs	19 mOhm
SVHC Present	Not Present
Supplier Device Package	TO-220F-3
Tape & Reel	No
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20 V
Vgs(th) (Max) @ Id	4 V
