| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDPF18N50T is an N-Channel power MOSFET manufactured by On Semiconductor. It is designed for high-voltage switching applications requiring efficient power management. The device offers a maximum drain-source voltage of 500V and a continuous drain current of 18A at case temperature. The on-resistance is typically 265mOhm at a gate drive of 10V and 9A drain current, ensuring low conduction losses.

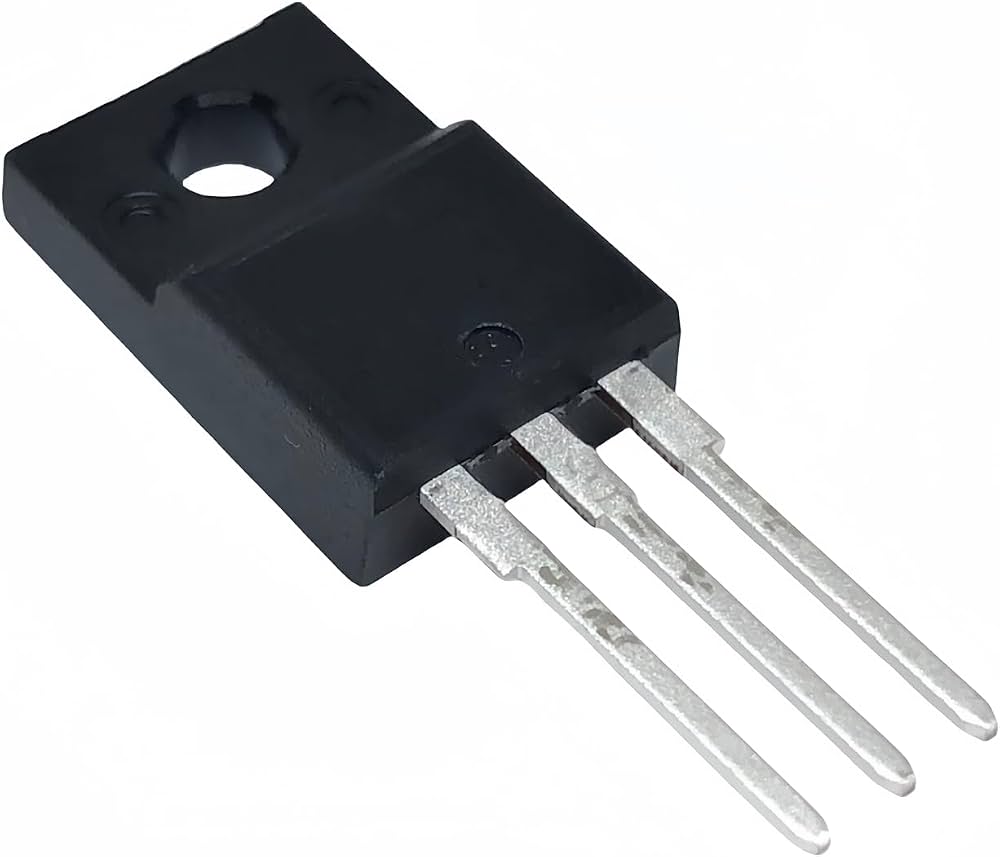

This MOSFET features a gate charge of 60nC at 10V and an input capacitance of 2860pF at 25V, enabling moderate switching speeds. The maximum power dissipation is 38.5W at case temperature, and the device operates over a junction temperature range of -55°C to 150°C. It is housed in a TO-220-3 Full Pack (TO-220F) through-hole package, which provides good thermal performance and ease of mounting on heatsinks.
Important: Compliance data (RoHS, MSL, REACH) is listed as unverified and should be confirmed with the manufacturer. Parcel-level tariff codes and lead time are placeholder values and have been removed from this listing.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.80 | $4.80 |
| 10+ | $2.49 | $2.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 500V.
The continuous drain current is 18A at case temperature (Tc).
The device is available in a TO-220-3 Full Pack (TO-220F) through-hole package.
The operating junction temperature range is -55°C to 150°C.
It is listed as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.
The maximum gate-source threshold voltage is 5V at a drain current of 250µA.
The maximum drain-source on-resistance is 265mOhm at a gate voltage of 10V and drain current of 9A.
