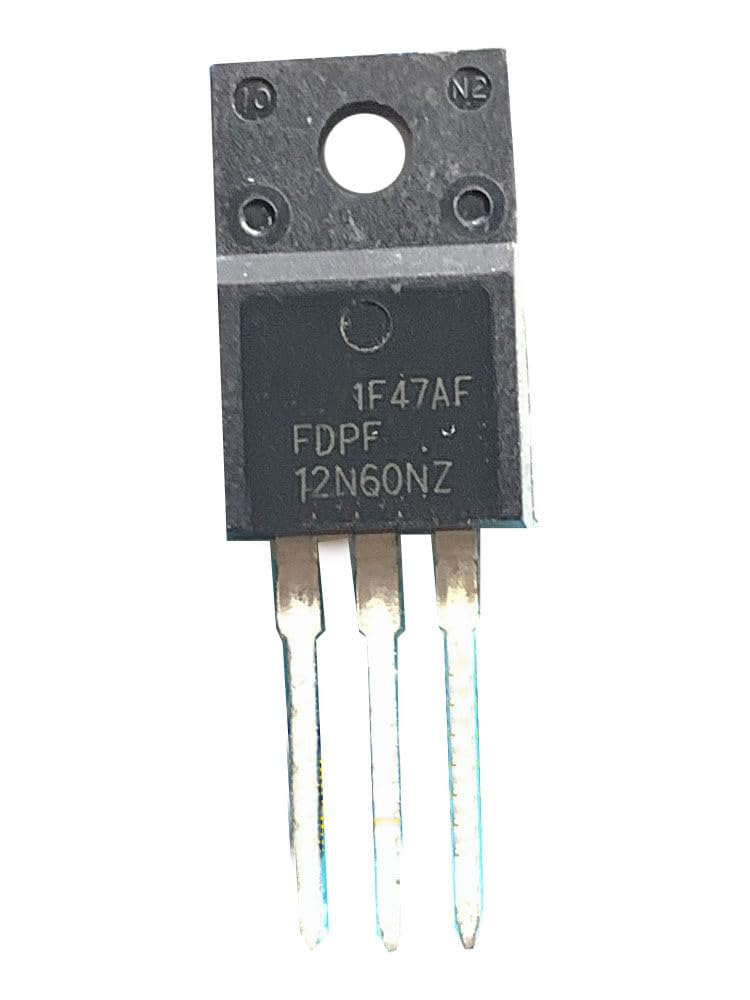

The FDPF12N60NZ is an N-Channel power MOSFET manufactured by On Semiconductor. It is designed for high-voltage switching applications with a maximum drain-source voltage rating of 600V and a continuous drain current of 12A at case temperature (Tc). The device features a maximum drain-source on-resistance of 650mOhm at a gate drive voltage of 10V and a drain current of 6A.
Key electrical characteristics include a maximum gate threshold voltage of 5V at 250µA drain current, a maximum gate charge of 34nC at 10V gate-source voltage, and a maximum input capacitance of 1676pF at 25V drain-source voltage. The maximum power dissipation is 39W at case temperature. The device can operate over a junction temperature range of -55°C to 150°C.
The FDPF12N60NZ is supplied in a TO-220-3 Full Pack package (TO-220F-3) with through-hole mounting, suitable for designs requiring isolated mounting. The part is listed as RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.47 | $2.47 |
| 10+ | $1.48 | $1.48 |
| 100+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 600V.
The maximum continuous drain current is 12A at case temperature (Tc).
The maximum drain-source on-resistance is 650mOhm at a gate voltage of 10V and drain current of 6A.
It comes in a TO-220-3 Full Pack package, also known as TO-220F-3, for through-hole mounting.
The operating junction temperature range is -55°C to 150°C.
It is listed as RoHS3 compliant, but this information is unverified.
