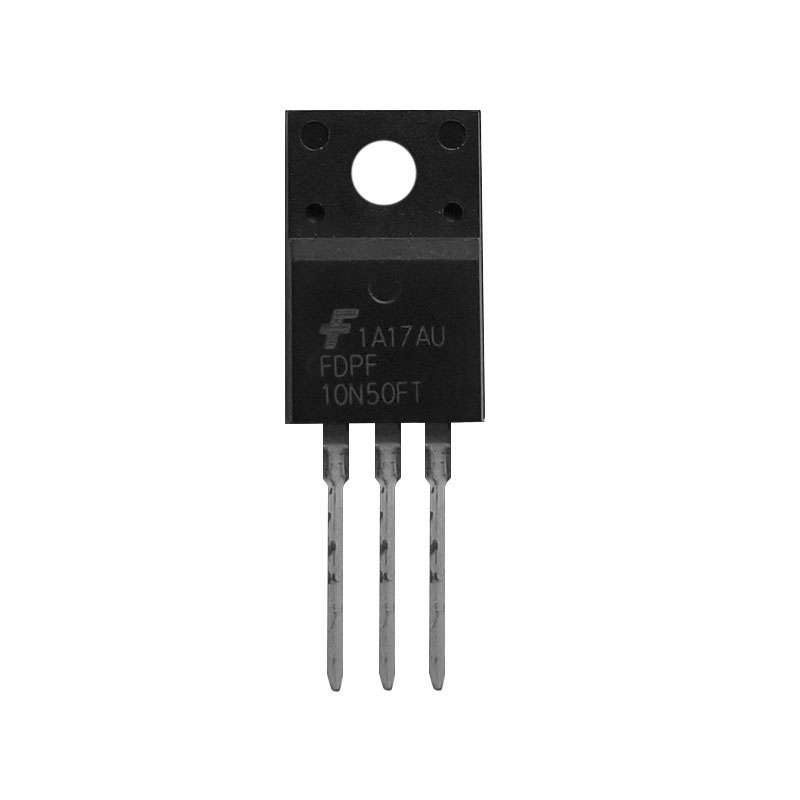

FDPF10N50FT N-Channel MOSFET with 500V drain-source voltage, 9A drain current, and 42W power dissipation. Housed in a TO-220F full-pack through-hole package.
Mfr Part #:

FDPF10N50FT

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
N-Channel MOSFET with 500V drain-source voltage, 9A drain current, and 42W power dissipation. Housed in a TO-220F full-pack through-hole package.
✓ Total Stock: 161 pcs
$ Price Range: $1.04

FDPF10N50FT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
161 pcs
On Request
161 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDPF10N50FT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDPF10N50FT Description

Short technical summary and product information.

The FDPF10N50FT is an N-Channel MOSFET from onsemi (formerly ON Semiconductor). It features a 500V drain-to-source voltage rating and a continuous drain current of 9A at case temperature (Tc). The maximum on-resistance is 850mΩ at Vgs = 10V and Id = 4.5A, providing efficient conduction for high-voltage switching applications.



The device is rated for 42W power dissipation at Tc and operates over a junction temperature range of -55°C to 150°C. It has a maximum gate threshold voltage of 5V at Id = 250µA and supports a gate-source voltage range of ±30V. With a gate charge of 24nC at Vgs = 10V and input capacitance of 1170pF at Vds = 25V, the FDPF10N50FT is suited for moderate-speed power switching topologies.



The MOSFET is offered in a TO-220-3 Full Pack (TO-220F-3) through-hole package, which provides an isolated tab for simplified heatsinking. It is listed as RoHS3 compliant in the source database, though this status is unverified and should be confirmed with the latest manufacturer documentation.

FDPF10N50FT Quick Information

Product Type: MOSFET (Single)
Series: UniFET FRFET
Canonical Name: N-Channel MOSFET, 500V, 9A, TO-220-3 Full Pack
Subcategory: Single FET

FDPF10N50FT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDPF10N50FT Estimated Pricing

Qty Low High
289+ $1.04 $1.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDPF10N50FT Features

  • 500V drain-to-source voltage rating.
  • 9A continuous drain current at Tc.
  • 850mΩ maximum on-resistance.
  • 42W power dissipation at Tc.
  • TO-220F full-pack through-hole package.

FDPF10N50FT Applications

  • Ideal for switch-mode power supply stages.
  • Used in power factor correction circuits.
  • Suitable for high-voltage DC-DC converters.
  • Applicable to LED lighting power drivers.

FDPF10N50FT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage rating of the FDPF10N50FT?

500V.

What is the maximum continuous drain current of the FDPF10N50FT?

9A at case temperature (Tc).

What is the maximum on-resistance of the FDPF10N50FT?

850mΩ at Id=4.5A and Vgs=10V.

What is the power dissipation rating of the FDPF10N50FT?

42W at case temperature (Tc).

What is the operating temperature range of the FDPF10N50FT?

-55°C to 150°C (junction temperature).

What package is the FDPF10N50FT available in?

TO-220-3 Full Pack, also known as TO-220F-3, with through-hole mounting.

Is the FDPF10N50FT RoHS compliant?

The source database lists it as RoHS3 compliant, but this status is unverified; check the manufacturer datasheet for confirmation.
