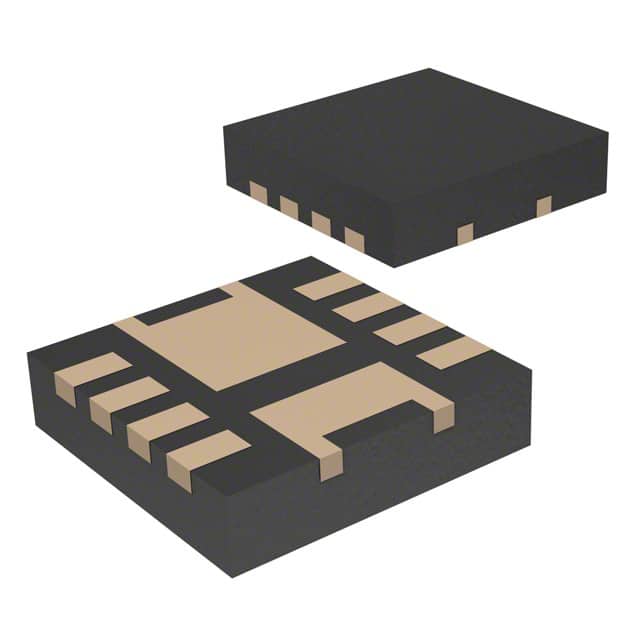

The FDPC8011S is a dual N-channel asymmetrical MOSFET from On Semiconductor, designed for synchronous buck converter applications. The device integrates a control MOSFET (Q1) and a SyncFET (Q2) with internally connected switch node, enabling easy placement and optimized circuit layout for reduced inductance and ringing.
Key electrical specifications include a drain-source voltage rating of 25V, continuous drain current of 13A (Q1) and 27A (Q2) at 25°C ambient, and pulsed currents up to 40A and 120A respectively. The on-resistance is specified at 6mΩ max for Q1 at 13A/10V and 1.8mΩ max for Q2 at 27A/10V, with additional values at 4.5V gate drive. Gate charge is 19nC for Q1 and 64nC for Q2 at 10V, and input capacitance is 1240pF and 4335pF respectively at 13V drain-source. The device also features single pulse avalanche energy ratings of 21mJ (Q1) and 97mJ (Q2).
The MOSFET is housed in a surface mount 8-PowerWDFN package (Powerclip-33) with 8 pins and 0.65mm lead pitch. It operates over a junction temperature range of -55°C to 150°C, with thermal resistance from junction to ambient as low as 63°C/W for Q2 under certain mounting conditions. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited).
Typical applications include computing and communications power supplies, general purpose point-of-load regulators, and other DC-DC converter topologies where high efficiency and compact layout are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.30 | $2.30 |
| 10+ | $1.61 | $1.61 |
| 100+ | $1.10 | $1.10 |
| 3,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 25V.
It is available in an 8-PowerWDFN surface mount package (Powerclip-33).
The operating junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant as verified in the datasheet.
Q1: 13A continuous at TA=25°C (20A at TC=25°C). Q2: 27A continuous at TA=25°C (60A at TC=25°C).
Q1: 6 mOhm max at 13A. Q2: 1.8 mOhm max at 27A.
It is a 2 N-Channel (Dual) Asymmetrical configuration.
