FDPC5030SG Dual N-Channel asymmetric MOSFET (Q1 control, Q2 SyncFET) rated at 30V with low Rds(on) of 5.0mΩ and 2.4mΩ, in a Power Clip 56 surface mount package.
Mfr Part #:

FDPC5030SG

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
Dual N-Channel asymmetric MOSFET (Q1 control, Q2 SyncFET) rated at 30V with low Rds(on) of 5.0mΩ and 2.4mΩ, in a Power Clip 56 surface mount package.
✓ Total Stock: 30,000 pcs
$ Price Range: $0.91 - $2.20

FDPC5030SG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDPC5030SG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

FDPC5030SG Description

Short technical summary and product information.

The FDPC5030SG is a dual N-Channel asymmetric MOSFET array from On Semiconductor, designed for synchronous buck converter applications. The device integrates a control MOSFET (Q1) and a synchronous SyncFET (Q2) with internally connected switch nodes for easy layout and reduced parasitic inductance.



Electrical specifications: Q1 offers a maximum drain-to-source on-resistance of 5.0 mΩ at Vgs=10V and 4.5V, and 6.5 mΩ at Vgs=4.5V. Q2 offers 2.4 mΩ at Vgs=10V and 3.0 mΩ at Vgs=4.5V. Both MOSFETs are rated for a drain-to-source voltage of 30V. Continuous drain current is 56A for Q1 and 84A for Q2 at TC=25°C. Gate charge is 24 nC at Vgs=10V.

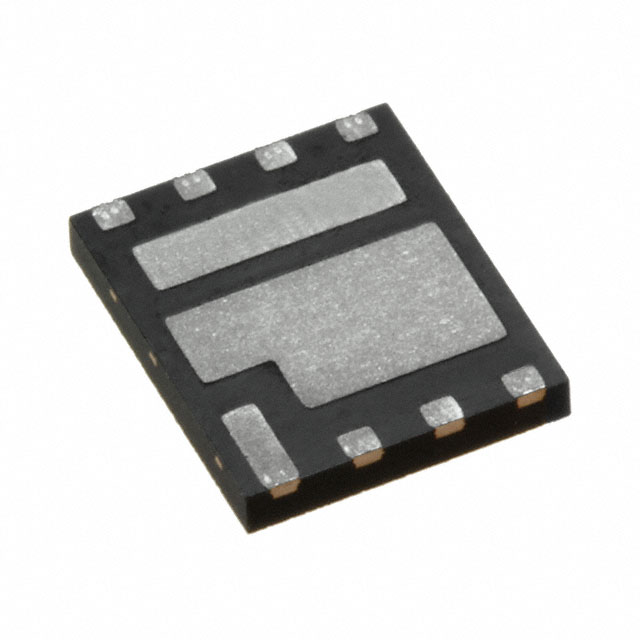

The device is housed in an 8-PowerWDFN (Power Clip 56) surface mount package, which provides low inductance and improved thermal performance. Operating temperature range is -55°C to 150°C. The part is RoHS compliant.



Typical applications include computing, communications, and general purpose point-of-load power supplies.

FDPC5030SG Quick Information

Product Type: MOSFET Array
Series: FDPC5030SG
Canonical Name: FDPC5030SG - Dual N-Channel Asymmetric MOSFET, 30V, Power Clip 56
Subcategory: Array

FDPC5030SG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDPC5030SG Estimated Pricing

Qty Low High
1+ $2.20 $2.20
10+ $1.31 $1.31
100+ $0.91 $0.91
3,000+ $0.91 $0.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDPC5030SG Features

  • Dual N-Channel asymmetric MOSFET array.
  • Low Rds(on) of 5.0mΩ for Q1 and 2.4mΩ for Q2.
  • Rated for 30V drain to source voltage.
  • Surface mount Power Clip 56 package.
  • RoHS compliant.

FDPC5030SG Applications

  • Ideal for synchronous buck converter designs.
  • Used in computing power management circuits.
  • Suitable for communications equipment.
  • General purpose point-of-load regulation.

FDPC5030SG FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage rating of the FDPC5030SG?

The drain-to-source voltage (Vds) is 30V for both Q1 and Q2, with a transient rating of 36V for less than 100 ns.

What package is the FDPC5030SG available in?

It is available in an 8-PowerWDFN (Power Clip 56) surface mount package.

What is the operating temperature range of this device?

The operating temperature range is -55°C to 150°C (junction temperature).

Is the FDPC5030SG RoHS compliant?

Yes, the datasheet states RoHS compliant.

What are the on-resistance values for Q1 and Q2?

Q1 maximum Rds(on) is 5.0 mΩ at Vgs=10V, Id=17A and 6.5 mΩ at Vgs=4.5V, Id=14A. Q2 maximum Rds(on) is 2.4 mΩ at Vgs=10V, Id=25A and 3.0 mΩ at Vgs=4.5V, Id=22A.

What is the continuous drain current rating?

At TC=25°C, Q1 is rated for 56A continuous and Q2 for 84A continuous. At TA=25°C, Q1 is 17A and Q2 is 25A (note 1a/1b).
