| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,350 pcs
|
2350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

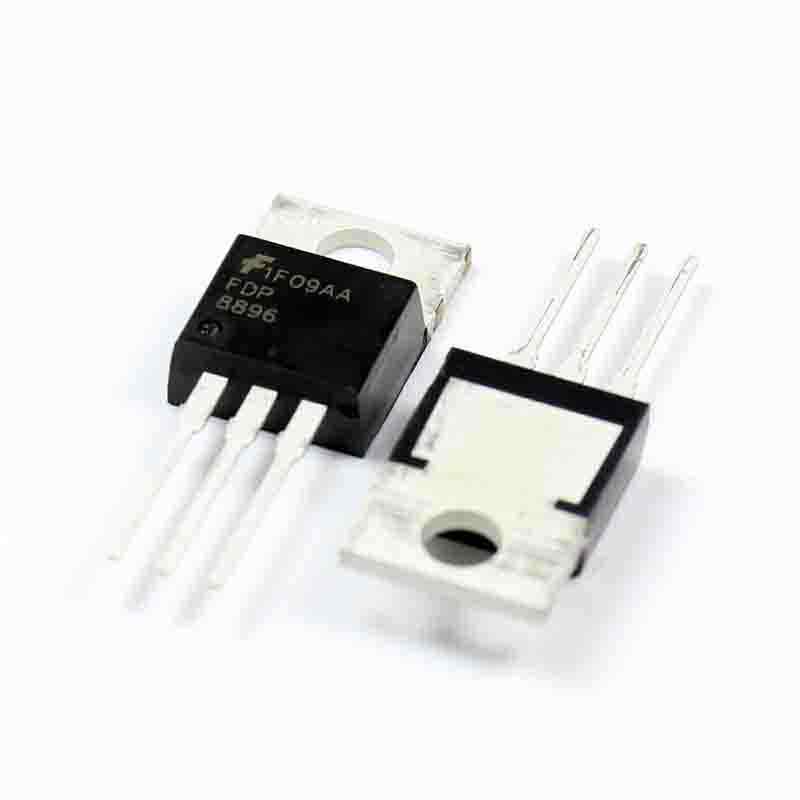

The FDP8896 is an N-Channel enhancement-mode power MOSFET manufactured by On Semiconductor using MOSFET (Metal Oxide) technology. It is designed for high-efficiency power management applications requiring a 30V drain-to-source voltage rating.
Key electrical characteristics include a continuous drain current of 16A at 25°C ambient temperature and 92A at 25°C case temperature. The device features a maximum on-resistance of 5.9mOhm at Vgs=10V and Id=35A, ensuring low conduction losses. The gate threshold voltage is 2.5V maximum at Id=250µA, and the maximum gate charge is 67nC at Vgs=10V, enabling fast switching.
The FDP8896 is offered in a through-hole TO-220-3 package, suitable for PCB mounting with standard soldering processes. It operates over a junction temperature range of -55°C to 175°C and can dissipate up to 80W at 25°C case temperature. The input capacitance is 2525pF at Vds=15V.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 10+ | $1.45 | $1.45 |
| 100+ | $0.97 | $0.97 |
| 500+ | $0.79 | $0.79 |
| 1,000+ | $0.71 | $0.71 |
| 2,500+ | $0.66 | $0.66 |
| 5,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FDP8896 has a maximum drain-to-source voltage (Vdss) of 30V.
The maximum continuous drain current is 16A at 25°C ambient temperature and 92A at 25°C case temperature.
The maximum on-resistance (Rds on) is 5.9mOhm at Id=35A and Vgs=10V.
The FDP8896 is available in a through-hole TO-220-3 package.
The FDP8896 operates over a junction temperature range of -55°C to 175°C.
The FDP8896 is listed as RoHS3 compliant, but this information is unverified.
The maximum gate threshold voltage (Vgs(th)) is 2.5V at Id=250µA.
