| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,545 pcs
|
5545 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDP65N06 is an N-Channel power MOSFET from On Semiconductor, designed for high-efficiency switching applications. It features a drain-to-source voltage (Vdss) of 60V and a continuous drain current of 65A at Tc. The device offers a low maximum on-resistance of 16mOhm at 32.5A and 10V gate drive, minimizing conduction losses.
With a maximum gate charge of 43nC at 10V and an input capacitance of 2170pF at 25V, the FDP65N06 is optimized for fast switching performance. The gate threshold voltage is 4V maximum at 250µA, and the maximum gate-source voltage is ±20V. The device can dissipate up to 135W of power at Tc and operates over a junction temperature range of -55°C to 150°C.

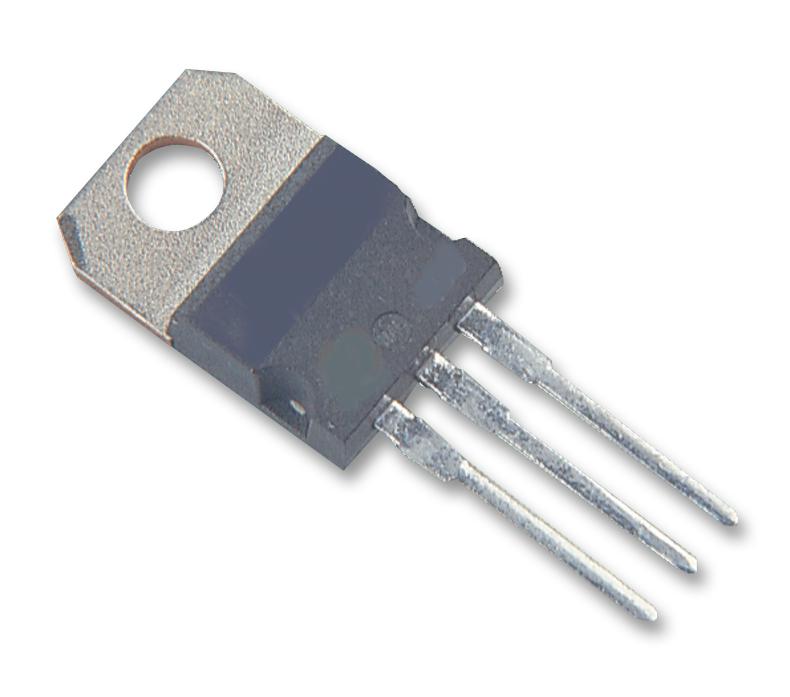

Housed in a through-hole TO-220-3 package, the FDP65N06 is suitable for designs requiring robust thermal performance and easy PCB mounting. Its electrical characteristics make it a good fit for power supplies, DC-DC converters, and motor control circuits where high current and low voltage drop are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.49 | $1.49 |
| 10+ | $1.33 | $1.33 |
| 100+ | $1.07 | $1.07 |
| 500+ | $0.88 | $0.88 |
| 1,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 60V.
The continuous drain current is 65A at Tc.
The FDP65N06 is offered in a TO-220-3 through-hole package.
The operating junction temperature range is -55°C to 150°C.
The part is listed as RoHS3 Compliant, but this status is unverified and should be confirmed with the manufacturer.
The maximum Rds(on) is 16mOhm at Id=32.5A and Vgs=10V.
The maximum gate threshold voltage (Vgs(th)) is 4V at Id=250µA.
