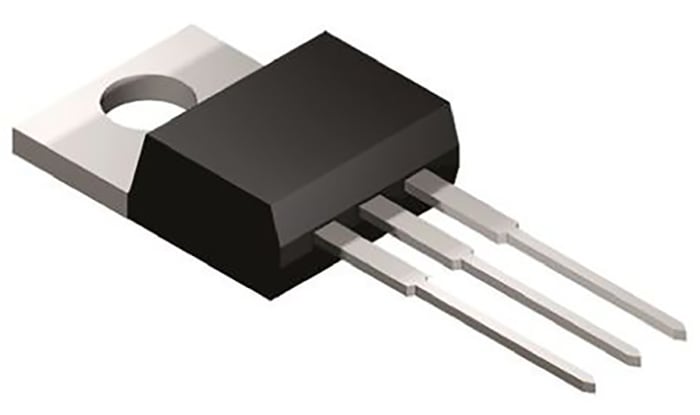

FDP3672 The FDP3672 is an N-Channel Power MOSFET from On Semiconductor. It features a 105V drain-source voltage, 41A continuous drain current, and low 33mOhm on-resistance.
Mfr Part #:

FDP3672

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FDP3672 is an N-Channel Power MOSFET from On Semiconductor. It features a 105V drain-source voltage, 41A continuous drain current, and low 33mOhm on-resistance.
✓ Total Stock: 95 pcs
$ Price Range: $0.96 - $2.80

FDP3672 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDP3672 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDP3672 Description

Short technical summary and product information.

The FDP3672 is an N-Channel Power MOSFET from On Semiconductor, designed for high-efficiency power conversion. It offers a drain-source voltage of 105V and continuous drain current of 41A at case temperature 25°C (5.9A at ambient). The device features a low typical on-resistance of 25 mOhm (max 33 mOhm) at VGS=10V, enabling reduced conduction losses. Gate charge is 37 nC max at VGS=10V, and input capacitance is 1670 pF max at VDS=25V, supporting high-frequency operation. The MOSFET is built with POWERTRENCH technology and includes low Miller charge, low Qrr body diode, and UIS capability. It is housed in a through-hole TO-220-3 package and operates over a junction temperature range of -55°C to 175°C. Typical applications include consumer appliances, synchronous rectification, battery protection circuits, motor drives, uninterruptible power supplies, and micro solar inverters.

FDP3672 Quick Information

Product Type: MOSFET - Single
Canonical Name: FDP3672 N-Channel Power MOSFET
Subcategory: N-Channel MOSFET

FDP3672 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDP3672 Estimated Pricing

Qty Low High
1+ $2.80 $2.80
10+ $1.39 $1.39
100+ $1.24 $1.24
500+ $1.00 $1.00
1,000+ $0.96 $0.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDP3672 Features

  • N-Channel MOSFET with 105V drain-source voltage.
  • Continuous drain current of 41A at 25°C case temperature.
  • Low on-resistance of 33 mOhm maximum at 10V gate drive.
  • POWERTRENCH technology for high efficiency and fast switching.
  • Through-hole TO-220-3 package for easy mounting.

FDP3672 Applications

  • Used in consumer appliance power supplies.
  • Ideal for synchronous rectification circuits.
  • Suitable for battery protection in portable devices.
  • Applied in motor drive and UPS systems.
  • Used in micro solar inverter designs.

FDP3672 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage of the FDP3672?

105V.

What package does the FDP3672 come in?

TO-220-3 through-hole package.

What is the operating temperature range?

-55°C to 175°C (junction temperature).

Is the FDP3672 RoHS compliant?

The part is marked as RoHS3 compliant, but this status is unverified.

What is the typical on-resistance of the FDP3672?

25 mOhm typical at VGS=10V, ID=41A; maximum 33 mOhm.

What is the gate charge of the FDP3672?

Maximum 37 nC at VGS=10V.

What is the input capacitance?

Maximum 1670 pF at VDS=25V.
