| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,127 pcs
|
4127 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

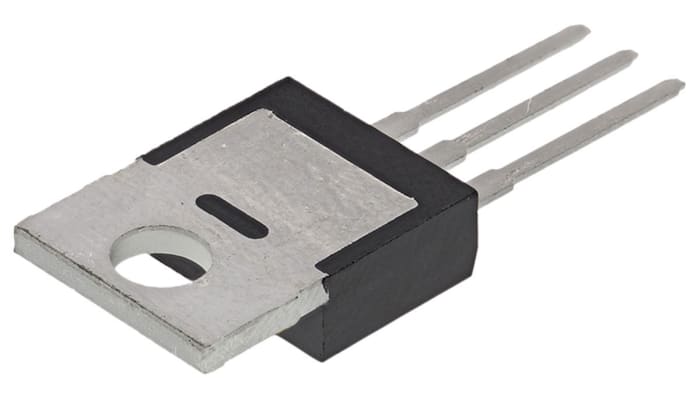

The FDP2710 is an N-Channel MOSFET from ON Semiconductor. It features a drain-source voltage (Vdss) of 250V and a continuous drain current (Id) of 50A at Tc. The device has a maximum on-resistance (Rds(on)) of 42.5mΩ when driven at 10V with 25A drain current. Maximum power dissipation is 260W at case temperature. The gate threshold voltage is 5V maximum at 250µA. Input capacitance is 7280pF maximum at 25V, and total gate charge is 101nC maximum at 10V. The MOSFET is housed in a TO-220-3 through-hole package, suitable for mounting on heatsinks. Operating temperature range is -55°C to 150°C (junction). This device is RoHS3 compliant and has an MSL of 1 (unlimited floor life). It is designed for high-power switching applications such as AC-DC converters, motor drives, and power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.74 | $3.74 |
| 10+ | $2.82 | $2.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250V maximum.
50A at Tc (case temperature).
TO-220-3 through-hole.
-55°C to 150°C (junction).
42.5mΩ maximum at 25A drain current and 10V gate drive.
RoHS3 compliant (unverified; confirm with manufacturer).
260W at case temperature.
