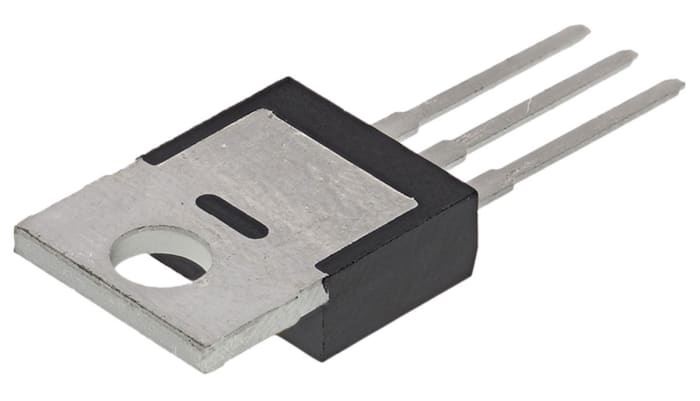

FDP2572 The FDP2572 is an N-Channel power MOSFET from On Semiconductor with a maximum drain-source voltage of 150V and continuous drain current of 29A (Tc). It is housed in a through-hole TO-220-3 package.
Mfr Part #:

FDP2572

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FDP2572 is an N-Channel power MOSFET from On Semiconductor with a maximum drain-source voltage of 150V and continuous drain current of 29A (Tc). It is housed in a through-hole TO-220-3 package.
✓ Total Stock: 1,570 pcs
$ Price Range: $1.46 - $3.31

FDP2572 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,570 pcs
On Request
1570 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDP2572 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDP2572 Description

Short technical summary and product information.

The FDP2572 is an N-Channel power MOSFET manufactured by On Semiconductor. It features a maximum drain-source voltage (Vdss) of 150V and a continuous drain current rating of 4A at ambient temperature (Ta) and 29A at case temperature (Tc). The device offers a low on-resistance of 54mΩ maximum at 9A drain current and 10V gate-source voltage.



This MOSFET is designed for efficient power switching applications. It has a gate charge of 34nC maximum at 10V and an input capacitance of 1770pF at 25V drain-source voltage. The gate-source threshold voltage is 4V maximum at 250µA, and the recommended drive voltage range is 6V to 10V for optimal Rds(on). Maximum power dissipation is 135W at case temperature.



The FDP2572 is packaged in a through-hole TO-220-3 package, suitable for easy mounting on heatsinks. It operates over a junction temperature range of -55°C to 175°C, making it suitable for demanding environments. The device is RoHS3 compliant.

FDP2572 Quick Information

Product Type: Power MOSFET
Canonical Name: FDP2572 N-Channel Power MOSFET 150V 29A TO-220-3
Subcategory: Power MOSFET

FDP2572 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDP2572 Estimated Pricing

Qty Low High
1+ $3.31 $3.31
10+ $1.94 $1.94
100+ $1.46 $1.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDP2572 Features

  • N-Channel MOSFET with 150V drain-source voltage.
  • Continuous drain current up to 29A at case temperature.
  • Low on-resistance of 54mΩ at 10V gate drive.
  • Through-hole TO-220-3 package for easy mounting.
  • Wide operating temperature range -55°C to 175°C.

FDP2572 Applications

  • Suitable for power management in DC-DC converters.
  • Used in motor control circuits.
  • Ideal for switching power supplies.
  • Applicable in general purpose power switching.

FDP2572 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the FDP2572?

-55°C to 175°C (junction temperature).

What package does the FDP2572 come in?

TO-220-3 through-hole package.

Is the FDP2572 RoHS compliant?

Yes, it is RoHS3 compliant.

What is the maximum drain-source voltage of the FDP2572?

150V.

What is the continuous drain current rating of the FDP2572?

4A at ambient temperature (Ta) and 29A at case temperature (Tc).

What is the typical on-resistance of the FDP2572?

Maximum 54mΩ at 9A drain current and 10V gate-source voltage.

What is the gate charge of the FDP2572?

Maximum 34nC at 10V gate-source voltage.
