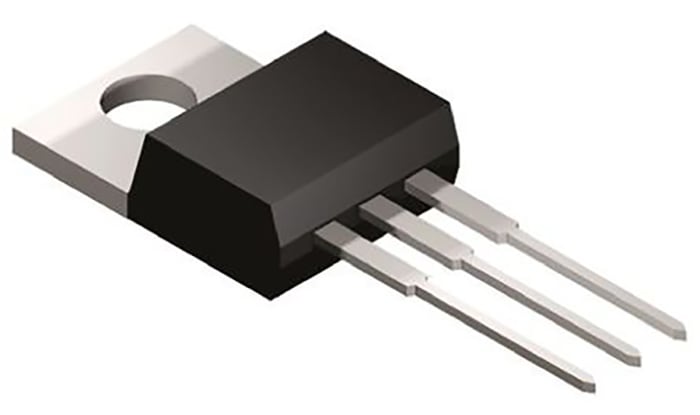

FDP2552 FDP2552 is a N-Channel Power MOSFET from On Semiconductor. It features 150V drain-source voltage, 37A continuous drain current, and 36mΩ on-resistance in a TO-220-3 through-hole package.
Mfr Part #:

FDP2552

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
FDP2552 is a N-Channel Power MOSFET from On Semiconductor. It features 150V drain-source voltage, 37A continuous drain current, and 36mΩ on-resistance in a TO-220-3 through-hole package.
✓ Total Stock: 5,124 pcs
$ Price Range: $1.48 - $3.32

FDP2552 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
324 pcs
On Request
324 pcs On Request 1 On Request On Request 1432+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDP2552 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDP2552 Description

Short technical summary and product information.

The FDP2552 is an N-Channel Power MOSFET from On Semiconductor, part of the POWERTRENCH family. It is designed for high-efficiency power conversion applications such as DC/DC converters, offline UPS, and high-voltage synchronous rectifiers. Key specifications include a drain-source voltage of 150 V, continuous drain current of 37 A at Tc=25°C (26 A at Tc=100°C), and a low on-resistance of 36 mΩ maximum at Vgs=10 V. The device features a total gate charge of 51 nC and input capacitance of 2800 pF, enabling efficient switching. It also offers single-pulse avalanche energy capability of 390 mJ. The MOSFET is housed in a TO-220-3 through-hole package, with a junction-to-case thermal resistance of 1.0°C/W and maximum power dissipation of 150 W. The operating junction temperature range is -55°C to 175°C. The device is RoHS compliant and lead-free.

FDP2552 Quick Information

Product Type: MOSFET
Canonical Name: FDP2552 N-Channel Power MOSFET
Subcategory: N-Channel Power MOSFET

FDP2552 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FDP2552 Estimated Pricing

Qty Low High
1+ $3.32 $3.32
10+ $2.15 $2.15
100+ $1.48 $1.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDP2552 Features

  • 150V drain-source voltage rating.
  • 37A continuous drain current.
  • Low 36mΩ on-resistance at 10V.
  • 51nC total gate charge for efficient switching.
  • 390mJ single-pulse avalanche energy capability.

FDP2552 Applications

  • Used in DC/DC converters and offline UPS.
  • Ideal for distributed power architectures and VRMs.
  • Primary switch for 24V and 48V systems.
  • High voltage synchronous rectifier applications.

FDP2552 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

The drain-source voltage rating is 150V.

What is the package type?

The package type is TO-220-3 (through-hole).

What is the operating temperature range?

The operating junction temperature range is -55°C to 175°C.

Is the FDP2552 RoHS compliant?

Yes, the device is listed as RoHS compliant (RoHS3).

What is the maximum on-resistance?

The maximum on-resistance is 36 mΩ at Vgs=10V and Id=16A.

What is the continuous drain current at 25°C?

The continuous drain current is 37A at Tc=25°C.

What is the gate threshold voltage?

The maximum gate threshold voltage is 4V at Id=250µA.
