Mfr Part #:

FDP2532

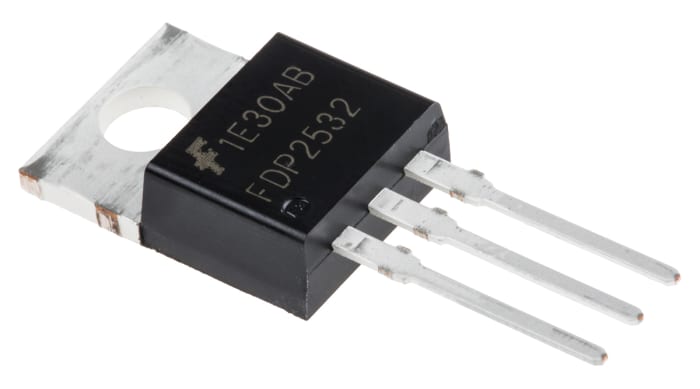

N-Channel MOSFET with 150V drain-source voltage and 79A continuous drain current. Housed in a TO-220-3 through-hole package.

✓ Total Stock: 2,664 pcs

$ Price Range: $2.81 - $5.76

FDP2532 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	1,724 pcs On Request	1724 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Flip Electronics ✓ Non-Authorised Inventory information	940 pcs On Request	940 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FDP2532 Description

Short technical summary and product information.

The FDP2532 is an N-Channel MOSFET from On Semiconductor, designed for high-power switching applications. It features a maximum drain-source voltage of 150V and a continuous drain current of 79A at case temperature (Tc) or 8A at ambient temperature (Ta). The device utilizes MOSFET (Metal Oxide) technology.

Key electrical characteristics include a low on-resistance of 16 mOhm at 33A and 10V gate drive, a maximum gate charge of 107 nC at 10V, and an input capacitance of 5870 pF at 25V. The gate threshold voltage is 4V at 250µA, and the maximum gate-source voltage is ±20V. The device can dissipate up to 310W at case temperature.

The MOSFET is housed in a TO-220-3 through-hole package, suitable for PCB mounting with standard lead spacing. It operates over a junction temperature range of -55°C to 175°C. The part is RoHS3 compliant and has an MSL of 1 (unlimited).

This MOSFET is suitable for a variety of power conversion and switching applications, including DC-DC converters, motor drives, and power supplies. Its low on-resistance and high current capability make it efficient for high-power designs.

FDP2532 Quick Information

Product Type: N-Channel MOSFET

Canonical Name: FDP2532 N-Channel MOSFET, 150V, 79A, TO-220-3

Subcategory: Power MOSFET

FDP2532 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FDP2532 Estimated Pricing

Qty	Low	High
1+	$5.76	$5.76
10+	$3.77	$3.77
100+	$2.81	$2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDP2532 Features

N-Channel MOSFET with 150V drain-source voltage.
Low on-resistance of 16 mOhm at 10V.
High continuous drain current of 79A.
TO-220-3 through-hole package.
Operating temperature range -55°C to 175°C.

FDP2532 Applications

Ideal for high-power switching applications.
Used in DC-DC converter designs.
Suitable for motor control circuits.

FDP2532 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the FDP2532?

150V.

What package does the FDP2532 come in?

TO-220-3.

What is the operating temperature range?

-55°C to 175°C (junction).

Is the FDP2532 RoHS compliant?

Yes, RoHS3 compliant (unverified).

What is the continuous drain current rating?

79A at case temperature (Tc) and 8A at ambient temperature (Ta).

What is the on-resistance of the FDP2532?

16 mOhm maximum at 33A and 10V gate drive.

What is the gate charge?

107 nC maximum at 10V gate-source voltage.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	On Semiconductor
Current	8 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	107 nC
Input Capacitance (Ciss) (Max) @ Vds	5870 pF
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C
Power Dissipation (Max)	310 W
Rds On (Max) @ Id, Vgs	16 mOhm
Supplier Device Package	TO-220-3
Tape & Reel	No
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20 V
Vgs(th) (Max) @ Id	4 V
