| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,800 pcs
|
12800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

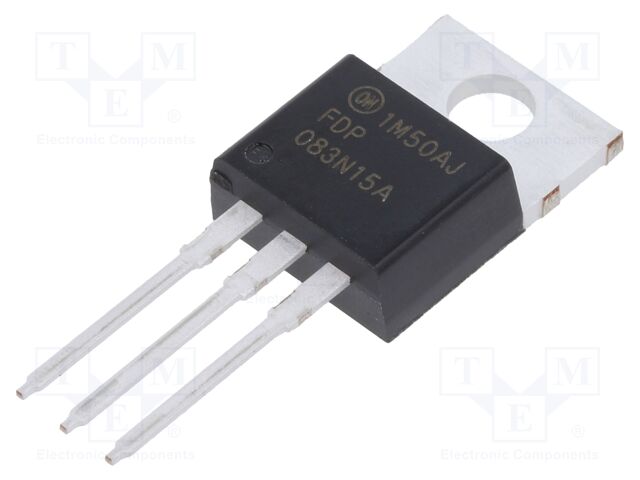

The FDP083N15A-F102 is an N-Channel MOSFET from ON Semiconductor, designed for high-efficiency power switching applications. It features a drain-source voltage (Vdss) of 150V and a continuous drain current of 83A at case temperature Tc. The device offers a low maximum on-resistance of 8.3 mOhm at 75A and 10V gate drive, ensuring minimal conduction losses.
With a maximum gate charge of 84 nC at 10V and input capacitance of 6040 pF at 25V, this MOSFET is suitable for moderate-speed switching applications. The gate threshold voltage is 4V maximum at 250µA drain current, and the maximum gate-source voltage is ±20V. Power dissipation is rated at 294W at case temperature.
The device is mounted via through-hole in a standard TO-220-3 package, which provides good thermal performance. The operating junction temperature range is -55°C to 175°C, making it suitable for industrial and automotive environments. Compliance with RoHS3, REACH, and MSL level 1 is indicated but unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.07 | $6.07 |
| 10+ | $3.22 | $3.22 |
| 100+ | $2.70 | $2.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150V.
83A at case temperature.
8.3 mOhm maximum at 75A and 10V gate drive.
84 nC maximum at 10V.
-55°C to 175°C junction temperature.
TO-220-3 through-hole package.
RoHS3 compliant (unverified).
