The FDP075N15A-F102 is an N-Channel enhancement mode MOSFET manufactured by onsemi using advanced POWERTRENCH technology. It is designed for applications requiring high efficiency and high power density, such as synchronous rectification in ATX/server/telecom power supplies, battery protection circuits, motor drives, and micro solar inverters.
Key electrical specifications include a maximum drain-to-source voltage of 150V, continuous drain current of 130A at 25°C case temperature (92A at 100°C), and pulsed drain current capability up to 522A. The on-resistance is typically 6.25mOhm with a maximum of 7.5mOhm at Vgs=10V and Id=100A. Gate charge is 100nC maximum, and input capacitance is 7350pF maximum at Vds=75V.

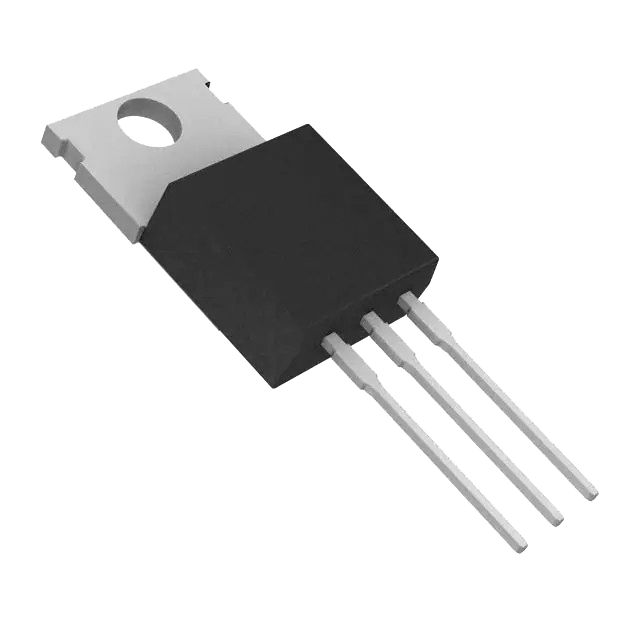

The device is housed in a TO-220-3 through-hole package, which allows for efficient heat dissipation. The maximum power dissipation is 333W at 25°C case temperature, with a derating factor of 2.22W/°C above 25°C. The junction-to-case thermal resistance is 0.45°C/W. Operating junction temperature range is -55°C to 175°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.00 | $5.00 |
| 10+ | $2.60 | $2.60 |
| 100+ | $2.36 | $2.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150V maximum.
130A at 25°C case temperature, derated to 92A at 100°C.
Typically 6.25mOhm, maximum 7.5mOhm at Vgs=10V, Id=100A.
TO-220-3 through-hole package.
-55°C to 175°C junction temperature.
The datasheet states RoHS compliant, but this is unverified and not specifically RoHS3.
Maximum 100nC at Vgs=10V.
