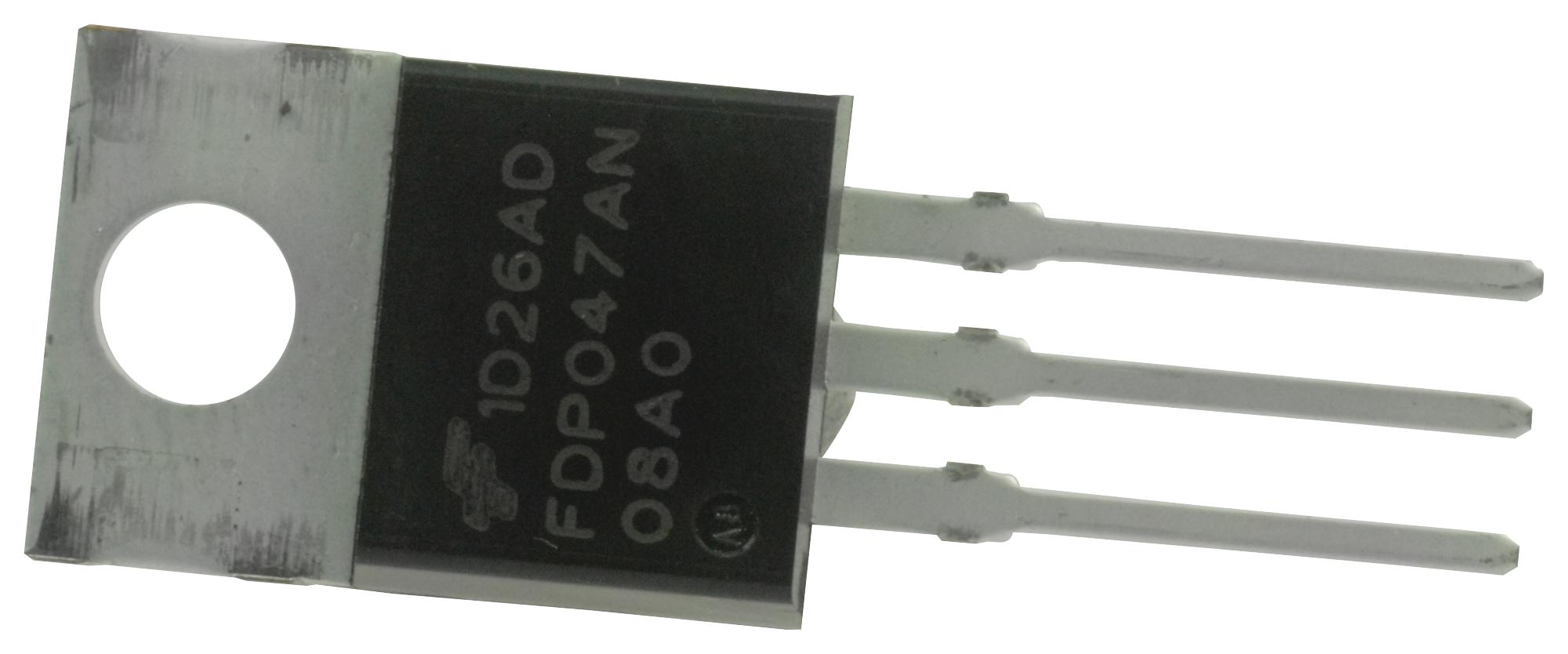

The FDP047AN08A0 from ON Semiconductor is an N-channel PowerTrench MOSFET designed for high-efficiency power switching. It is rated for a maximum drain-to-source voltage of 75 V and a continuous drain current of 80 A when the case temperature is below 144°C (VGS = 10 V). The device has a maximum on-resistance of 4.7 mΩ at ID = 80 A and VGS = 10 V, with a typical value of 4.0 mΩ, and supports gate drive voltages of 6 V or 10 V.
With a typical total gate charge of 92 nC at VGS = 10 V and a maximum input capacitance of 6600 pF at VDS = 25 V, the FDP047AN08A0 is suited for high-frequency switching applications such as synchronous rectification and battery protection. The device can dissipate up to 310 W at TC = 25°C and operates over a junction temperature range of -55°C to +175°C. The maximum gate-to-source voltage is ±20 V, and the gate threshold voltage is 4 V maximum at ID = 250 µA. For applications limited by junction-to-ambient thermal resistance (62°C/W), the continuous drain current is 15 A at a case temperature of 25°C.
The MOSFET is supplied in a through-hole TO-220-3 package, which is also the supplier device package. It is Pb-free and RoHS compliant. Typical applications include synchronous rectification in ATX, server, and telecom power supplies, battery protection circuits, motor drives, and uninterruptible power supplies.
