| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,669 pcs
|
1669 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDP032N08B-F102 is an N-Channel power MOSFET manufactured by ON Semiconductor. It is designed for high-current switching applications with a drain-source voltage rating of 80V and a continuous drain current of 120A (at Tc). The device features a low maximum on-resistance of 3.3mOhm at 100A drain current and 10V gate drive, enabling efficient power conversion.
The MOSFET utilizes standard MOSFET (Metal Oxide) technology and requires a gate drive voltage of 10V for optimal Rds(on). The maximum gate threshold voltage is 4.5V at 250µA drain current, and the gate-source voltage is limited to ±20V. The device has a maximum gate charge of 144nC at 10V and an input capacitance of 10965pF at 40V drain-source voltage, which are important for switching speed considerations.

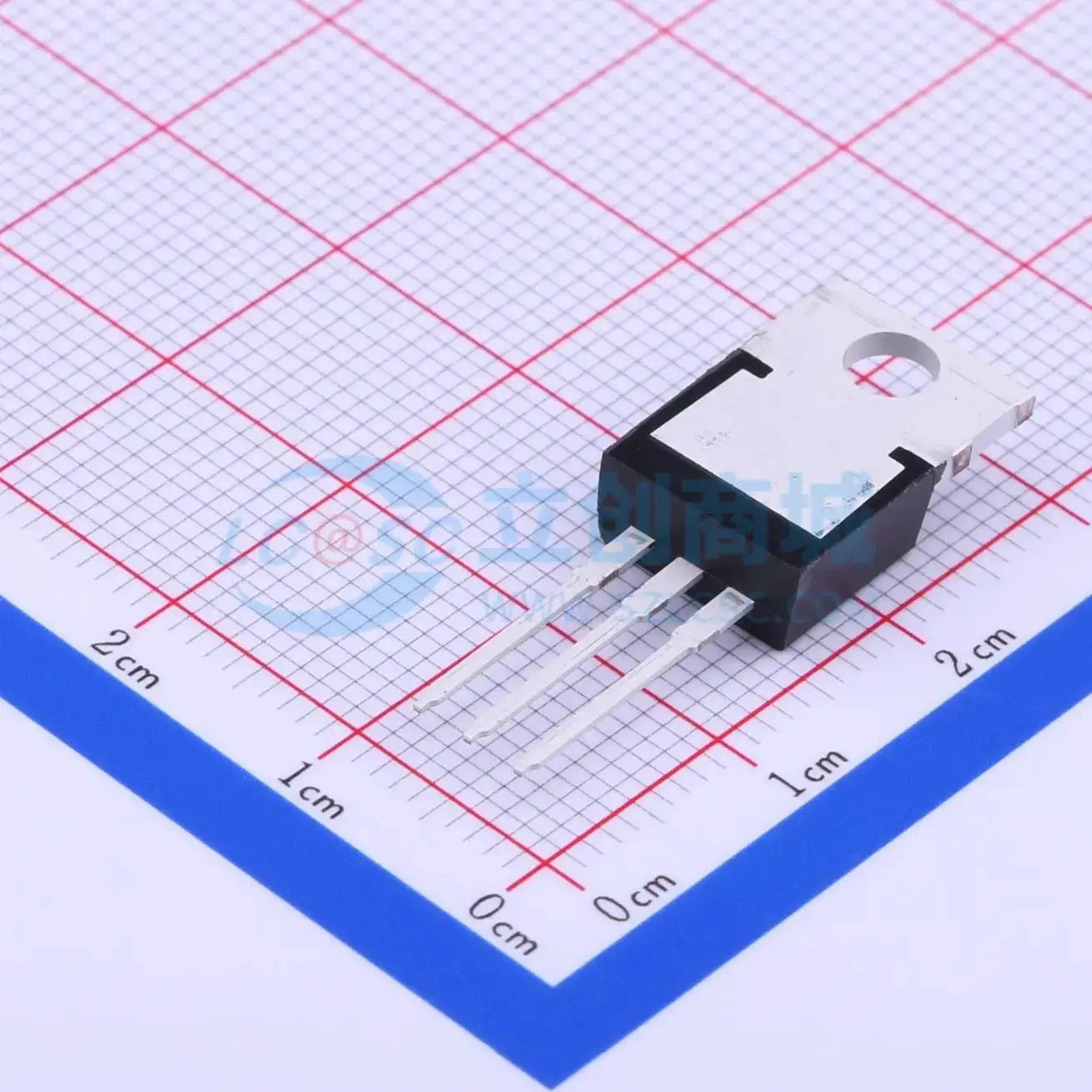

The FDP032N08B-F102 is housed in a TO-220-3 through-hole package, suitable for mounting on heatsinks for thermal management. The maximum power dissipation is 263W (at Tc), and the operating junction temperature range is -55°C to 175°C. This makes it suitable for demanding power electronics applications such as motor drives, power supplies, and DC-DC converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.93 | $3.93 |
| 10+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 80V.
It is available in a TO-220-3 through-hole package.
The operating temperature range is -55°C to 175°C (junction temperature).
The part is listed as RoHS3 compliant, but this status is unverified.
The maximum continuous drain current is 120A at Tc.
The maximum on-resistance is 3.3mOhm at Vgs=10V and Id=100A.
The maximum gate charge is 144nC at Vgs=10V.
