| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44,970 pcs
|
44970 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMT800150DC is an N-Channel power MOSFET manufactured by onsemi using the advanced POWERTRENCH process. It is designed for high-efficiency power conversion and load switching, combining low on-resistance with excellent switching performance. The device is rated for a maximum drain-to-source voltage of 150 V and a maximum continuous drain current of 99 A at a case temperature of 25°C (62 A at 100°C, 15 A at 25°C ambient). Maximum pulsed drain current is 561 A.
At VGS = 10 V and ID = 15 A, the maximum drain-to-source on-resistance is 6.5 mΩ; at VGS = 8 V and ID = 13 A it is 8.4 mΩ. The total gate charge is 108 nC and input capacitance is 8205 pF at VDS = 75 V. The device also features a single-pulse avalanche energy rating of 1093 mJ. Maximum power dissipation is 156 W at Tc=25°C and 3.2 W at Ta=25°C.

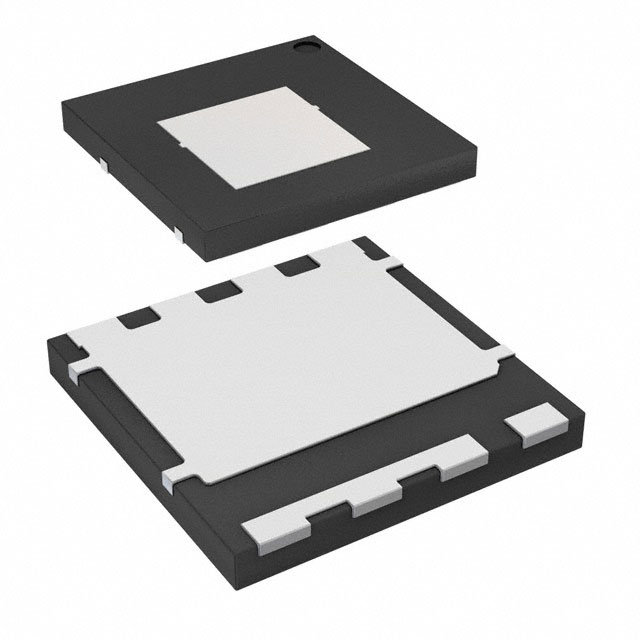

The FDMT800150DC is housed in a surface-mount 8-PowerVDFN package (PQFN8 8x8, 2P Dual Cool 88) with supplier device package designation 8-Dual Cool™88. This low-profile 8x8 mm package provides very low junction-to-ambient thermal resistance and is rated MSL1. The operating junction temperature range is -55°C to 150°C.
Typical applications include ORing FET/load switching, synchronous rectification, and DC-DC conversion. The device is Pb-Free, Halide Free, and RoHS compliant, and it is 100% UIL tested.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.89 | $8.89 |
| 10+ | $6.29 | $6.29 |
| 100+ | $4.84 | $4.84 |
| 500+ | $4.82 | $4.82 |
| 1,000+ | $4.58 | $4.58 |
| 3,000+ | $4.58 | $4.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (VDS) is 150 V.
At a case temperature of 25°C, continuous drain current is 99 A; at 100°C it is 62 A. At 25°C ambient, it is 15 A. Pulsed current rating is 561 A.
Maximum Rds(on) is 6.5 mΩ at VGS = 10 V and ID = 15 A, and 8.4 mΩ at VGS = 8 V and ID = 13 A.
The FDMT800150DC comes in an 8-PowerVDFN surface-mount package (PQFN8 8x8, 2P Dual Cool 88), also designated 8-Dual Cool™88.
The operating junction temperature range is -55°C to 150°C.
Yes. The datasheet states the device is Pb-Free, Halide Free and RoHS Compliant.
Typical applications from the datasheet include ORing FET/load switching, synchronous rectification, and DC-DC conversion.
