| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,191 pcs
|
9191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMS86380-F085 is an N-Channel Power MOSFET from onsemi, designed for automotive and power management applications. It offers a drain-to-source voltage of 80V and a continuous drain current of 50A at case temperature 25°C. The device features a low on-resistance of 11.3mΩ typical and 13.4mΩ maximum at VGS=10V and ID=50A, enabling efficient power handling. With a total gate charge of 20nC typical (30nC maximum) and input capacitance of 1440pF, it is optimized for fast switching and low drive requirements.
The MOSFET is qualified to AEC-Q101 and is PPAP capable, making it suitable for automotive engine control, powertrain management, solenoid and motor drivers, electronic steering, and integrated starter/alternator systems. It also serves as a primary switch for 12V systems and in distributed power architectures and VRM designs. The device is Pb-free, halogen-free/BFR-free, and RoHS compliant, supporting environmental standards.

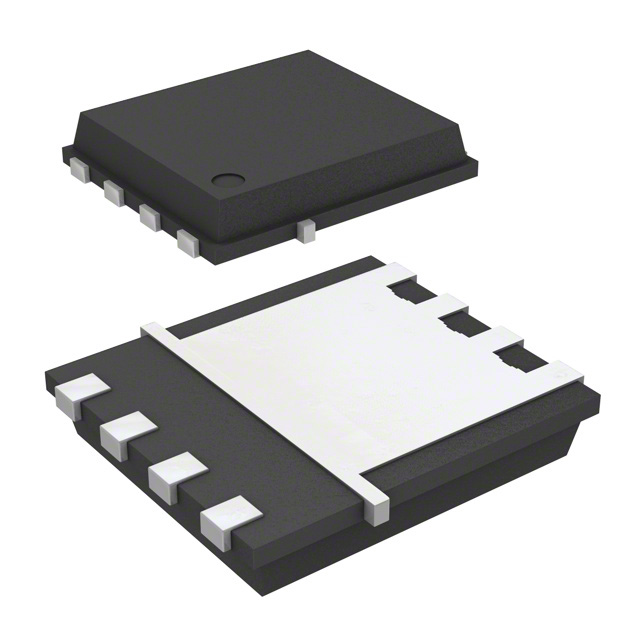

Packaged in the Power56 (8-PowerVDFN) surface-mount package, the FDMS86380-F085 is available in tape and reel packaging with a standard quantity of 3000 pieces. It operates over a junction temperature range of -55°C to +175°C and has a power dissipation of 75W. The junction-to-case thermal resistance is 2°C/W, and junction-to-ambient is 50°C/W (with 1 in² pad of 2 oz copper). This makes it a robust choice for high-current, high-temperature applications.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage rating is 80V.
The operating junction temperature range is -55°C to +175°C.
Yes, it is RoHS3 compliant and also Pb-free and halogen-free.
The device is offered in Power56 (8-PowerVDFN) surface-mount package.
The continuous drain current is 50A at TC=25°C.
On-resistance is 11.3mΩ typical and 13.4mΩ maximum at VGS=10V and ID=50A.
Yes, it is AEC-Q101 qualified and PPAP capable.
