The FDMS86200DC is an N-Channel MOSFET manufactured by onsemi using the POWERTRENCH process with Shielded Gate technology. It is rated for a maximum drain-to-source voltage of 150V and a maximum continuous drain current of 40A at a case temperature of 25°C, with a pulsed drain current rating of 100A. The device offers a maximum on-resistance of 17mΩ at a gate-to-source voltage of 10V and a drain current of 9.3A, and 25mΩ at 6V gate drive.

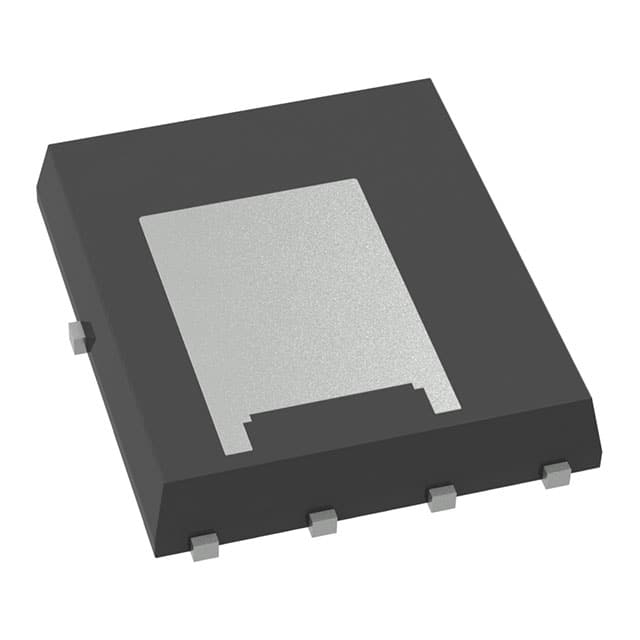

The MOSFET is housed in an 8-PowerTDFN package, also known as the DUAL COOL DFN8 package, which provides top-side cooling capability. The package supports surface mount mounting and is supplied on 13-inch reels with 12mm tape width, with a shipping quantity of 3000 units per reel. The device has a maximum power dissipation of 125W at a case temperature of 25°C and 3.2W at an ambient temperature of 25°C.
Electrical characteristics include a maximum gate-to-source voltage of ±20V, a maximum gate threshold voltage of 4V at 250µA drain current, and a maximum input capacitance of 2955pF at 75V drain-source voltage. The device also features a single pulse avalanche energy rating of 294mJ and a drain-source breakdown voltage of 150V minimum. The operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.04 | $6.04 |
| 10+ | $4.04 | $4.04 |
| 100+ | $2.90 | $2.90 |
| 500+ | $2.64 | $2.64 |
| 3,000+ | $2.64 | $2.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 150V.
The maximum continuous drain current is 40A at a case temperature of 25°C, and 9.3A at an ambient temperature of 25°C.
The maximum on-resistance is 17mΩ at a gate-to-source voltage of 10V and drain current of 9.3A, and 25mΩ at 6V and 7.8A.
The operating junction temperature range is -55°C to 150°C.
The device is available in an 8-PowerTDFN package, also known as 8-PQFN (5x6), for surface mount applications.
The datasheet states the device is RoHS compliant.
The maximum power dissipation is 125W at a case temperature of 25°C and 3.2W at an ambient temperature of 25°C.
