| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47,579 pcs
|
47579 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
22,020 pcs
|
22020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| Drive Voltage (Nominal @ for Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMS86180 is an N-Channel enhancement-mode Power MOSFET designed and manufactured by ON Semiconductor. It is rated for a maximum drain-source voltage of 100V and a continuous drain current of 151A at case temperature Tc. The device offers a low maximum on-resistance of 3.2mOhm at a gate-source voltage of 10V and a drain current of 67A, enabling high-efficiency power switching.
This MOSFET features a maximum gate charge of 54nC at Vgs=6V and a maximum input capacitance of 6215pF at Vds=50V, which are important parameters for estimating switching losses and gate drive requirements. The gate threshold voltage is specified with a maximum of 4V at a drain current of 370µA, and the maximum gate-source voltage rating is ±20V.

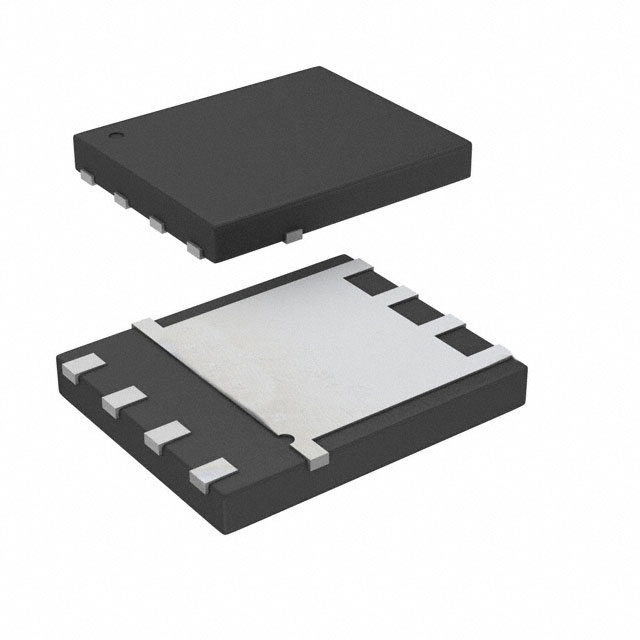

The FDMS86180 is supplied in a Power56 (8-PowerTDFN) surface-mount package, which provides excellent thermal performance and a compact footprint for space-constrained power applications. The device is rated for an operating junction temperature range of -55°C to +150°C. It is suitable for a variety of power management and switching applications where high current handling and low conduction losses are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.18 | $7.18 |
| 10+ | $4.84 | $4.84 |
| 100+ | $3.52 | $3.52 |
| 500+ | $3.33 | $3.33 |
| 3,000+ | $3.33 | $3.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 100V.
The maximum continuous drain current is 151A at case temperature Tc.
The maximum on-resistance is 3.2mOhm at Vgs=10V and Id=67A.
The FDMS86180 is available in a Power56 (8-PowerTDFN) surface-mount package.
The operating junction temperature range is -55°C to +150°C.
