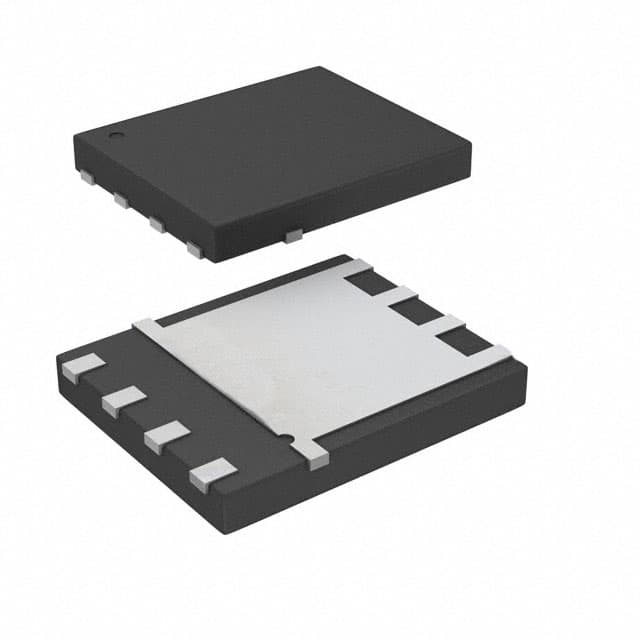

FDMS86150A FDMS86150A is an N-Channel MOSFET from ON Semiconductor with 100V drain-source voltage, 80A continuous drain current, and 4.85mΩ on-resistance at 10V gate drive. It is housed in a Power56 surface mount package.
Mfr Part #:

FDMS86150A

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
FDMS86150A is an N-Channel MOSFET from ON Semiconductor with 100V drain-source voltage, 80A continuous drain current, and 4.85mΩ on-resistance at 10V gate drive. It is housed in a Power56 surface mount package.
✓ Total Stock: 34,515 pcs
$ Price Range: $1.95 - $5.56

FDMS86150A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
34,515 pcs
On Request
34515 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMS86150A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDMS86150A Description

Short technical summary and product information.

This N-Channel MOSFET uses ON Semiconductor's advanced POWERTRENCH process with Shielded Gate technology. It features a maximum drain-source voltage of 100V, continuous drain current of 80A at case temperature 25°C, and a low on-resistance of 4.85mΩ at VGS=10V and ID=16A. The device is designed for high efficiency power conversion applications such as primary DC-DC converters, secondary synchronous rectifiers, and load switches. It is offered in a Power56 (8-PowerTDFN) surface mount package with MSL1 moisture sensitivity level. The component is RoHS compliant and Pb-Free. Thermal characteristics include a maximum junction temperature of 150°C, with junction-to-case thermal resistance of 1.1°C/W and junction-to-ambient of 45°C/W (1 in² pad).

FDMS86150A Quick Information

Product Type: N-Channel MOSFET
Series: POWERTRENCH
Canonical Name: FDMS86150A N-Channel MOSFET, 100V, 80A, 4.85mΩ
Subcategory: N-Channel MOSFET

FDMS86150A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

FDMS86150A Estimated Pricing

Qty Low High
1+ $5.56 $5.56
10+ $3.70 $3.70
100+ $2.64 $2.64
500+ $2.34 $2.34
1,000+ $2.24 $2.24
3,000+ $2.12 $2.12
6,000+ $1.95 $1.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMS86150A Features

  • N-Channel Shielded Gate MOSFET technology.
  • 100V drain-source voltage rating.
  • 80A continuous drain current at 25°C case.
  • Low on-resistance of 4.85mΩ at 10V gate drive.
  • Power56 surface mount package with MSL1.

FDMS86150A Applications

  • Ideal for primary DC-DC converter MOSFET.
  • Used as secondary synchronous rectifier.
  • Suitable for load switch applications.
  • High efficiency power conversion designs.
  • Power management in computing and telecom.

FDMS86150A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

100V maximum.

What package is the FDMS86150A available in?

8-PowerTDFN (Power56) surface mount package.

What is the operating junction temperature range?

-55°C to 150°C.

Is the FDMS86150A RoHS compliant?

Yes, RoHS3 compliant and Pb-Free.

What is the maximum on-resistance?

4.85mΩ at VGS=10V, ID=16A; 7.8mΩ at VGS=6V, ID=13A.

What is the continuous drain current rating?

80A at TC=25°C, 16A at TA=25°C.

What is the gate threshold voltage?

4V maximum at ID=250µA.
