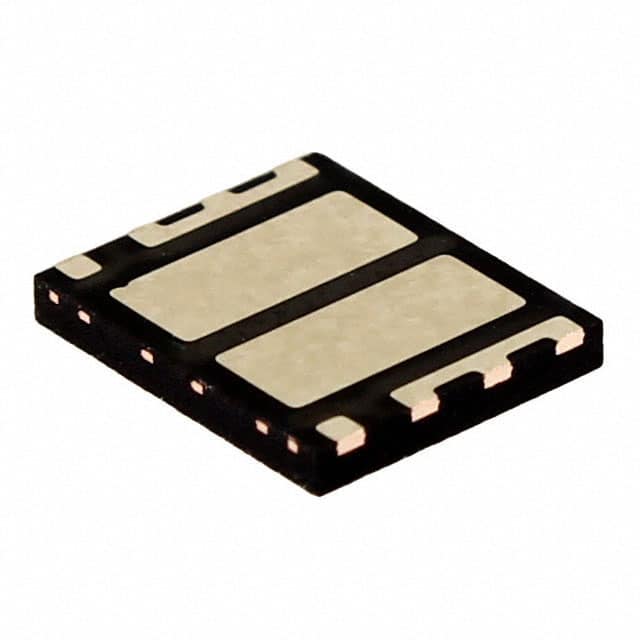

FDMS8090 Dual N-channel MOSFET from On Semiconductor rated for 100V drain-source voltage and 10A continuous current. Features 13mOhm max on-resistance and logic level gate drive in a surface mount 8-PowerWDFN package.
Mfr Part #:

FDMS8090

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
Dual N-channel MOSFET from On Semiconductor rated for 100V drain-source voltage and 10A continuous current. Features 13mOhm max on-resistance and logic level gate drive in a surface mount 8-PowerWDFN package.
✓ Total Stock: 13,077 pcs
$ Price Range: $4.07 - $8.21

FDMS8090 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,020 pcs
On Request
10020 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,581 pcs
On Request
2581 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
476 pcs
On Request
476 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMS8090 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

FDMS8090 Description

Short technical summary and product information.

The FDMS8090 is a dual N-channel MOSFET from ON Semiconductor designed for high-efficiency power management. It features a drain-source voltage rating of 100V and a continuous drain current of 10A. The maximum on-resistance is 13mOhm at 10A and 10V gate drive, enabling low conduction losses. The device has a logic level gate drive, making it compatible with low-voltage control signals. Input capacitance is 1800 pF at 50V, and gate charge is 27 nC at 10V, supporting fast switching. The MOSFET operates over a junction temperature range of -55°C to 150°C and dissipates up to 2.2W. It is housed in a compact 8-PowerWDFN surface mount package, also known as 8-MLP (5x6) Power56, which offers excellent thermal performance. The FDMS8090 is suitable for synchronous rectification, DC-DC converters, and power distribution applications. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1.

FDMS8090 Quick Information

Product Type: MOSFET Array
Series: PowerTrench
Canonical Name: MOSFET 2 N-Channel (Dual) 100V 10A 13mOhm Surface Mount 8-PowerWDFN
Subcategory: MOSFET Arrays

FDMS8090 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FDMS8090 Estimated Pricing

Qty Low High
1+ $8.21 $8.21
10+ $5.57 $5.57
100+ $4.07 $4.07
3,000+ $4.07 $4.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMS8090 Features

  • Dual N-channel MOSFET in a single package.
  • 100V drain-source voltage rating.
  • 10A continuous drain current.
  • 13mOhm maximum on-resistance.
  • Logic level gate drive for low voltage control.

FDMS8090 Applications

  • Suitable for DC-DC converter designs.
  • Ideal for power management in portable devices.
  • Used in motor control circuits.
  • Applicable for battery protection circuits.

FDMS8090 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FDMS8090?

100V

What is the package type of the FDMS8090?

8-PowerWDFN surface mount package, also known as 8-MLP (5x6) Power56.

What is the operating temperature range of the FDMS8090?

-55°C to 150°C junction temperature.

Is the FDMS8090 RoHS compliant?

Yes, it is listed as RoHS3 compliant.

What is the typical on-resistance of the FDMS8090?

The maximum on-resistance is 13mOhm at 10A and 10V gate drive.

What is the gate threshold voltage of the FDMS8090?

The maximum gate threshold voltage is 4V at 250µA drain current.

What is the MOSFET configuration of the FDMS8090?

It is a dual N-channel MOSFET.
