| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,000 pcs
|
27000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
546 pcs
|
546 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Feature | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |

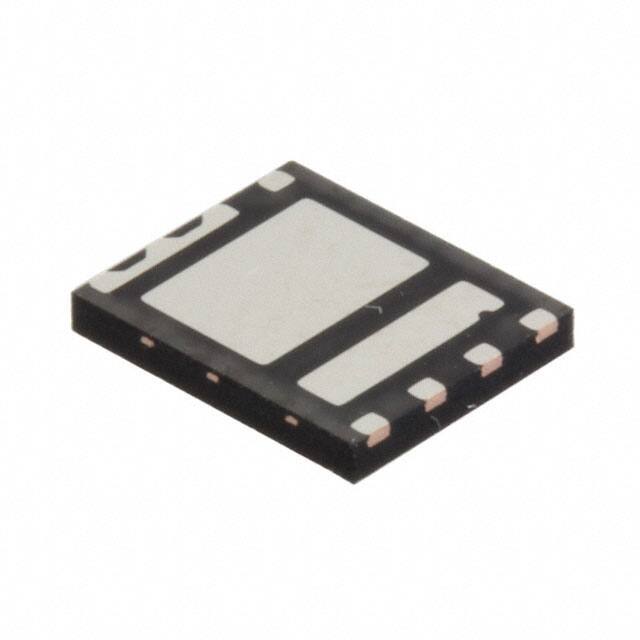

The FDMS7608S is a dual N-channel MOSFET array from On Semiconductor, integrating two independent N-channel MOSFETs in a single Power56 (8-PowerWDFN) surface mount package. Each device is rated for a drain-source voltage of 30V, with continuous drain currents of 12A and 15A respectively. The MOSFETs feature a logic level gate, allowing direct drive from low-voltage control signals, and exhibit a maximum on-resistance of 10mOhm at 12A, 10V.
Key electrical characteristics include a maximum gate charge of 24nC at 10V, input capacitance of 1510pF at 15V, and a maximum gate threshold voltage of 3V at 250µA. The array is built using metal-oxide semiconductor technology and can dissipate up to 1W of power. The operating junction temperature range spans -55°C to 150°C, making it suitable for a wide range of environments.
The compact 8-PowerWDFN package offers a low-profile, surface-mountable solution for space-constrained designs. The FDMS7608S is offered in tape and reel or cut tape options through distribution partners.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.20 | $1.20 |
| 100+ | $0.80 | $0.80 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.58 | $0.58 |
| 3,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 30V.
It is available in an 8-PowerWDFN package, also known as Power56.
The operating junction temperature range is -55°C to 150°C.
It is listed as RoHS3 Compliant, though the status is unverified with low confidence.
The continuous drain currents are 12A and 15A for the two channels respectively.
Maximum on-resistance is 10mOhm at 12A, 10V gate drive.
Yes, it features a logic level gate, allowing operation with low voltage gate drives.
