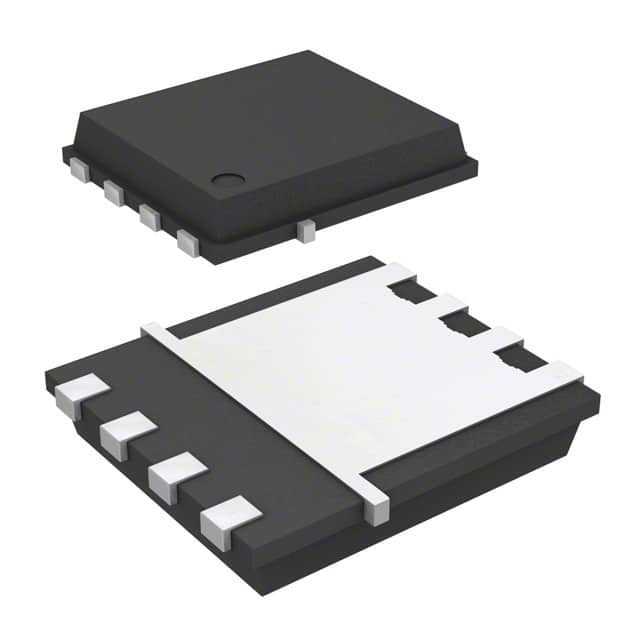

FDMS3602S Dual N-Channel logic level gate MOSFET rated for 25V drain-source voltage and 15A/26A continuous drain current, in a Power56 surface-mount package.
Mfr Part #:

FDMS3602S

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
Dual N-Channel logic level gate MOSFET rated for 25V drain-source voltage and 15A/26A continuous drain current, in a Power56 surface-mount package.
✓ Total Stock: 88,511 pcs
$ Price Range: $1.43 - $4.04

FDMS3602S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
88,507 pcs
On Request
88507 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMS3602S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

FDMS3602S Description

Short technical summary and product information.

The FDMS3602S is a dual N-Channel MOSFET from On Semiconductor featuring a logic level gate. It is designed for surface-mount applications in the 8-PowerTDFN package with a Power56 supplier device package. The device offers a maximum drain-source voltage (Vdss) of 25V and supports continuous drain currents of 15A per channel with a combined total rating of 26A. On-resistance is specified at a maximum of 5.6mΩ at 15A and 10V gate drive. The maximum gate threshold voltage is 3V at 250µA drain current. The device has a maximum gate charge of 27nC at 10V and a maximum input capacitance of 1680pF at 13V drain-source voltage. Maximum power dissipation is 1W. Operating junction temperature ranges from -55°C to 150°C. The FDMS3602S is suitable for a variety of power management and switching applications requiring compact footprint and efficient performance.

FDMS3602S Quick Information

Product Type: MOSFET Array
Series: PowerTrench
Canonical Name: FDMS3602S Dual N-Channel MOSFET
Subcategory: Dual N-Channel MOSFET

FDMS3602S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDMS3602S Estimated Pricing

Qty Low High
1+ $4.04 $4.04
10+ $2.65 $2.65
100+ $1.97 $1.97
500+ $1.62 $1.62
1,000+ $1.58 $1.58
3,000+ $1.43 $1.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMS3602S Features

  • Dual N-Channel MOSFET with logic level gate.
  • Maximum 25V drain-source voltage.
  • Low 5.6mΩ on-resistance at 15A, 10V.
  • Surface-mount Power56 package.

FDMS3602S Applications

  • DC-DC converters and voltage regulator modules.
  • Load switching in portable devices.
  • Battery protection and management circuits.

FDMS3602S FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the FDMS3602S?

25V.

What is the maximum continuous drain current for the FDMS3602S?

15A per channel and 26A total for the dual configuration.

What is the on-resistance of the FDMS3602S?

Maximum 5.6mΩ at 15A drain current and 10V gate voltage.

What is the operating temperature range of the FDMS3602S?

-55°C to 150°C (junction).

What is the package type for the FDMS3602S?

8-PowerTDFN surface-mount package, supplier device package Power56.

Is the FDMS3602S RoHS compliant?

Marked as RoHS3 compliant but not verified.
