Mfr Part #:

FDMS2672

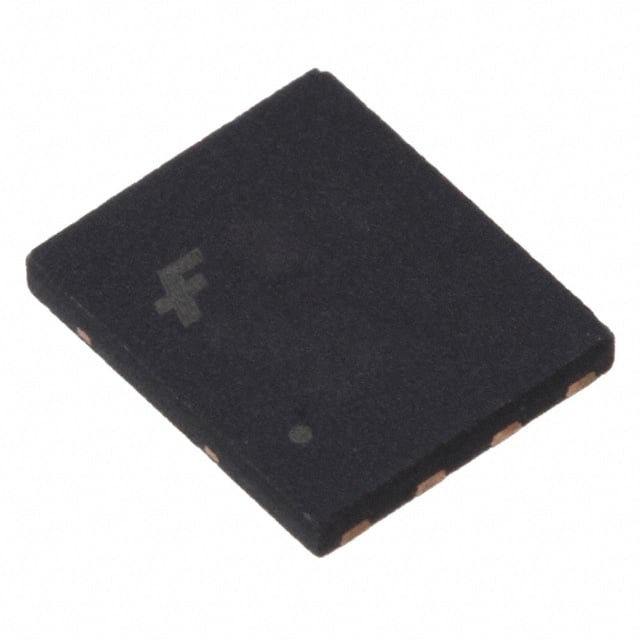

On Semiconductor FDMS2672 is a 200V N-Channel Power MOSFET in an 8-PowerWDFN package, capable of 3.7A (ambient) or 20A (case) continuous drain current with a low on-resistance of 77mOhm.

✓ Total Stock: 14,485 pcs

$ Price Range: $1.61 - $4.00

FDMS2672 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	11,705 pcs On Request	11705 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	2,780 pcs On Request	2780 pcs	On Request	1	On Request	On Request	17+	On Request	On Request

FDMS2672 Description

Short technical summary and product information.

The FDMS2672 is a 200V N-Channel Power MOSFET from On Semiconductor, designed for efficient power switching in surface-mount applications. It features a maximum drain-source on-resistance of 77mΩ at Vgs=10V and a gate charge of 42nC, enabling fast switching with low conduction losses.

This device is housed in an 8-PowerWDFN (5x6mm) package with a maximum power dissipation of 78W at the case temperature, making it suitable for high-power density designs. The operating junction temperature range spans -55°C to 150°C.

Common applications include DC-DC converters, synchronous rectification, and power management in industrial and automotive systems. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).

FDMS2672 Quick Information

Product Type: Single N-Channel MOSFET

Series: UltraFET

Canonical Name: FDMS2672 N-Channel Power MOSFET

Subcategory: Single N-Channel Power MOSFET

FDMS2672 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FDMS2672 Estimated Pricing

Qty	Low	High
1+	$4.00	$4.00
10+	$2.62	$2.62
100+	$1.92	$1.92
500+	$1.61	$1.61
3,000+	$1.61	$1.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMS2672 Features

N-Channel MOSFET rated for 200V drain-source voltage.
Continuous drain current of 3.7A at ambient temperature.
Low on-resistance of 77 milliohms at 10V gate drive.
Gate charge of 42 nC for efficient high-speed switching.
Surface-mount 8-PowerWDFN package for compact designs.

FDMS2672 Applications

Power switching in DC-DC converter circuits.
Synchronous rectification in power supplies.
Motor drive and inverter control modules.
Load switch in power management systems.

FDMS2672 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage of the FDMS2672?

The maximum drain-source voltage (Vdss) is 200V.

What is the continuous drain current rating of the FDMS2672?

The maximum continuous drain current is 3.7A at ambient temperature (Ta) and 20A at case temperature (Tc).

What is the on-resistance of the FDMS2672?

The maximum drain-source on-resistance (Rds On) is 77 mOhm at Id=3.7A and Vgs=10V.

What is the operating temperature range for the FDMS2672?

The junction operating temperature range is -55°C to 150°C.

What package does the FDMS2672 come in?

The FDMS2672 is supplied in an 8-PowerWDFN surface-mount package, also known as 8-MLP (5x6) Power56.

What is the gate charge of the FDMS2672?

The maximum gate charge (Qg) is 42 nC at Vgs=10V.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	On Semiconductor
Current	3.7 A (Ta)
Drain to Source Voltage (Vdss)	200 V
Drive Voltage (Max Rds On, Min Rds On)	10 V (for min Rds On)
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	42 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	2315 pF @ 100 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	2.5 W (Ta)
Rds On (Max) @ Id, Vgs	77 mΩ @ 3.7 A, 10 V
Supplier Device Package	8-MLP (5x6), Power56
Tape & Reel	Yes
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20 V
Vgs(th) (Max) @ Id	4 V @ 250 µA
