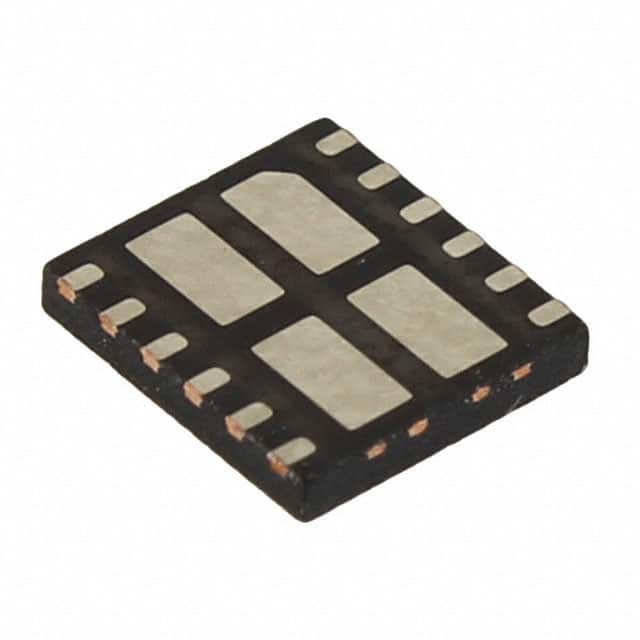

FDMQ8205 The FDMQ8205 from ON Semiconductor is a GreenBridge 2 series quad MOSFET bridge rectifier. It features N and P-channel MOSFETs for low power loss and is designed for Power Over Ethernet applications.
Mfr Part #:

FDMQ8205

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FDMQ8205 from ON Semiconductor is a GreenBridge 2 series quad MOSFET bridge rectifier. It features N and P-channel MOSFETs for low power loss and is designed for Power Over Ethernet applications.
✓ Total Stock: 500 pcs
$ Price Range: $0.75

FDMQ8205 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMQ8205 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
FET Type
Halogen Free
Internal Switch(s)
Mounting Type
Operating Temperature
Ratio
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

FDMQ8205 Description

Short technical summary and product information.

The FDMQ8205 is part of ON Semiconductor's GreenBridge 2 series, offering a high-efficiency bridge rectifier solution that replaces conventional diode bridges. This device utilizes N-channel and P-channel MOSFETs to significantly reduce power loss caused by voltage drop, making it ideal for applications with limited power delivery, such as Power over Ethernet (PoE) Power Device (PD) applications.



Designed for compatibility with the IEEE802.3at PoE standard, the FDMQ8205 meets detection and classification requirements while maintaining a small backfeed voltage. It operates within a temperature range of -40°C to 85°C and features a 57V voltage rating and 400µA current rating. The device is housed in a compact 12-MLP (5x4.5) package, suitable for surface mounting.



Key features include low RDS(on) 80V rated MOSFETs, self-driving circuitry, and the ability to maximize available power and voltage while eliminating thermal design problems. The FDMQ8205 is also Pb-Free and Halogen Free, aligning with environmental standards.

FDMQ8205 Quick Information

Product Type: OR Controller
Series: GreenBridge/C01162
Canonical Name: FDMQ8205 Bridge Rectifier
Subcategory: Ideal Diode

FDMQ8205 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

FDMQ8205 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMQ8205 Features

  • Low power loss bridge rectifier replaces diodes.
  • N and P-channel MOSFETs for efficiency.
  • IEEE802.3at compatible for PoE.
  • Compact 12-MLP surface mount package.
  • 80V rated MOSFETs with low RDS(on).

FDMQ8205 Applications

  • Ideal for Power over Ethernet.
  • Suitable for IP phones.
  • Used in network cameras.
  • Applicable for wireless access points.

FDMQ8205 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum voltage rating?

The maximum voltage rating is 57V.

What is the current rating?

The current rating is 400µA (0.0004A).

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What FET types are integrated?

The device integrates both N-Channel and P-Channel MOSFETs.

Does the device have internal switches?

Yes, the device has internal switch(es).

What package is the FDMQ8205 available in?

The package is 12-WDFN exposed pad, with supplier package 12-MLP (5x4.5), and it is surface mount.

What is the primary application?

The primary application is Power over Ethernet (PoE).
