FDMF8811 The ON Semiconductor FDMF8811 is a 100V Bridge Power Stage Module designed for high current DC-DC switching applications. It integrates a driver IC, two power MOSFETs, and a bootstrap diode.
Mfr Part #:

FDMF8811

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FDMF8811 is a 100V Bridge Power Stage Module designed for high current DC-DC switching applications. It integrates a driver IC, two power MOSFETs, and a bootstrap diode.
✓ Total Stock: 31,000 pcs
$ Price Range: $0.75

FDMF8811 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
30,000 pcs
On Request
30000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMF8811 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
SVHC Present
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

FDMF8811 Description

Short technical summary and product information.

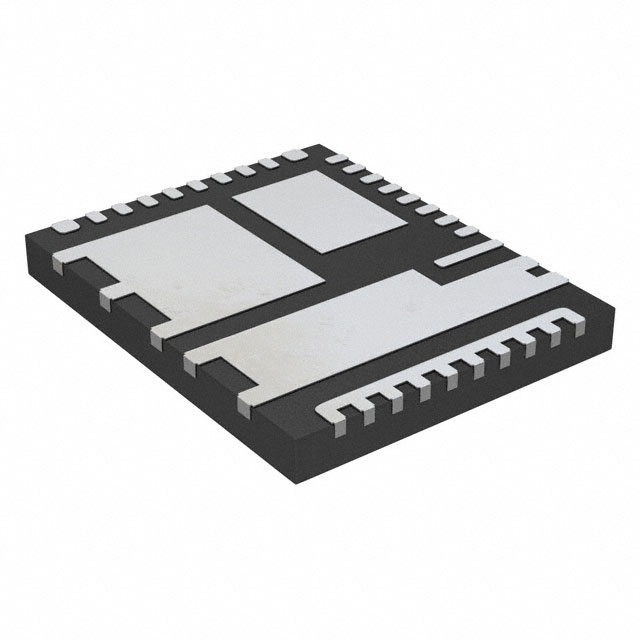

The ON Semiconductor FDMF8811 is a fully optimized, compact, integrated MOSFET plus driver power stage solution for high current DC-DC switching applications. This Bridge Power Stage (BPS) Module integrates a driver IC, two power MOSFETs, and a bootstrap diode into a thermally enhanced, compact 6.0 mm x 7.5 mm PQFN package.



The FDMF8811 utilizes high-performance POWERTRENCH® MOSFET technology, reducing switch ringing in converter applications. The driver IC features low delay time and matched PWM input propagation delays, enhancing overall performance. The PQFN packaging ensures low package resistance, improving current handling capability and performance.



Key electrical specifications include a wide driver power supply range of 8 V to 14 V and high current handling capability of 20 A. The module offers over 97% system efficiency at 600 W full bridge applications. It is designed with 100 V POWERTRENCH MOSFETs for clean switching waveforms and features integrated under-voltage lockout (UVLO) for the drive power supply.



Typical applications for the FDMF8811 include Telecom Half/Full-Bridge DC-DC Converters, Two-Switch Forward Converters, Intermediate Bus Converters, Brick Converters, and High-current DC-DC Point of Load (POL) Converters. The device is supplied in a 36-PQFN package suitable for surface mounting.

FDMF8811 Quick Information

Product Type: Bridge Power Stage Module
Canonical Name: FDMF8811 Bridge Power Stage Module
Subcategory: Power Stage Module

FDMF8811 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDMF8811 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMF8811 Features

  • Compact 6.0 mm x 7.5 mm PQFN package.
  • High current handling capability of 20 A.
  • Wide driver power supply range: 8 V to 14 V.
  • Integrated 100 V Half-Bridge Gate Driver.
  • Utilizes high performance POWERTRENCH MOSFETs.

FDMF8811 Applications

  • Telecom Half / Full − Bridge DC−DC Converters.
  • Two−Switch Forward Converters.
  • Intermediate Bus Converters.
  • Brick Converters.
  • High−current DC−DC Point of Load Converters.

FDMF8811 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FDMF8811?

The driver power supply range is 8V to 14V.

What is the maximum junction temperature?

The operating junction temperature range is -40°C to 125°C.

What package is the FDMF8811 available in?

The device is available in a 36-PQFN (7.5x6mm) surface mount package.

What is the peak current handling capability?

The device can handle up to 20A peak current.

What interface does the FDMF8811 use?

The device uses a PWM interface.
