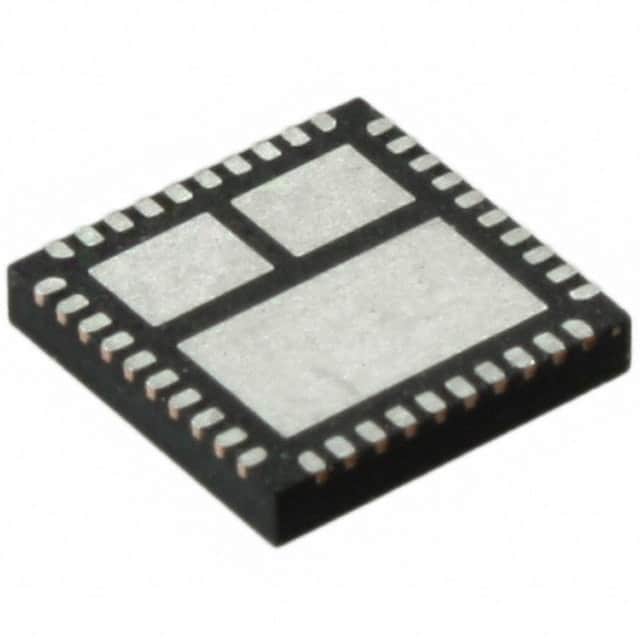

FDMF6823B The ON Semiconductor FDMF6823B is a Full Half-Bridge Driver IC designed for synchronous buck converters. It offers a high current rating and a wide operating temperature range.
Mfr Part #:

FDMF6823B

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FDMF6823B is a Full Half-Bridge Driver IC designed for synchronous buck converters. It offers a high current rating and a wide operating temperature range.
✓ Total Stock: 392,928 pcs
$ Price Range: $0.75

FDMF6823B Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
389,805 pcs
On Request
389805 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
2,970 pcs
On Request
2970 pcs On Request 1 On Request On Request 1317 On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
153 pcs
On Request
153 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMF6823B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Fault Protection
Features
Interface
Load Type
Mounting Type
Operating Temperature
Output Configuration
Rds On (Typ)
Supplier Device Package
Technology
Voltage
View Similar Products (0)

FDMF6823B Description

Short technical summary and product information.

The ON Semiconductor FDMF6823B is an integrated circuit designed as a Full Half-Bridge Driver. It is suitable for applications such as synchronous buck converters, providing a robust solution for power management.



Key electrical specifications include an operating voltage range of 3V to 16V and a significant current handling capability of 55A. The device features a low on-resistance of 1 Ohm for both high-side (HS) and low-side (LS) configurations. It supports Logic and PWM interfaces and includes essential fault protection mechanisms like over-temperature, shoot-through, and undervoltage lockout (UVLO).



This driver is built using DrMOS and Power MOSFET technology. It operates within a wide temperature range of -40°C to 150°C (TJ). The component is packaged in a 40-PQFN (6x6) or 40-TFQFN Exposed Pad, designed for surface mounting.



Additional features include a bootstrap circuit, making it a versatile component for various power conversion designs.

FDMF6823B Quick Information

Product Type: Full Half-Bridge Driver
Series: FDMF
Canonical Name: FDMF6823B Half Bridge Driver
Subcategory: Power Management ICs

FDMF6823B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDMF6823B Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMF6823B Features

  • High current rating of 55A.
  • Wide operating voltage from 3V to 16V.
  • Operates from -40°C to 150°C.
  • Surface mount 40-PQFN package.
  • Includes bootstrap circuit feature.

FDMF6823B Applications

  • Ideal for synchronous buck converters.
  • Suitable for high-power applications.
  • Used in power management circuits.
  • Supports efficient power conversion.

FDMF6823B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the FDMF6823B?

The operating voltage range for the FDMF6823B is 3V to 16V.

What is the current rating of the FDMF6823B?

The FDMF6823B has a current rating of 55A.

What is the typical on-resistance for the FDMF6823B?

The typical on-resistance for the FDMF6823B is 1 Ohm for both low-side and high-side.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 150°C (TJ).

How is the FDMF6823B mounted?

The FDMF6823B is designed for surface mounting.

What package type is the FDMF6823B supplied in?

The FDMF6823B is supplied in a 40-PQFN (6x6) or 40-TFQFN Exposed Pad package.

What fault protection features are included in the FDMF6823B?

The FDMF6823B includes over temperature, shoot-through, and UVLO fault protection.
