Mfr Part #:

FDMF3039

Name: FDMF3039
Brand: On Semiconductor
SKU: FDMF3039

Mfr Name: On Semiconductor

Description:

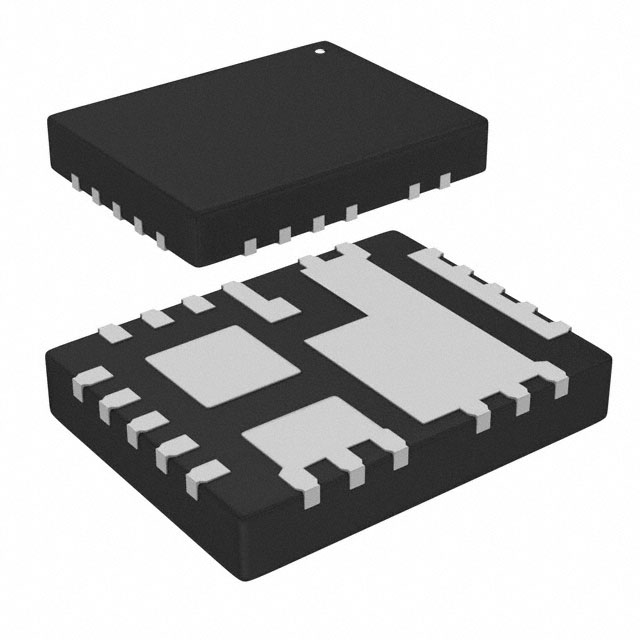

IC HALF BRIDGE DRIVER 30A 22PQFN

Stock on Request

FDMF3039 Description

Short technical summary and product information.

IC HALF BRIDGE DRIVER 30A 22PQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Full Half-Bridge Drivers
Manufacturer Name	On Semiconductor
Applications	DC-DC Converters, Synchronous Buck Converter
Current	30A
Fault Protection	Shoot-Through, UVLO
Features	Bootstrap Circuit, Diode Emulation
Interface	PWM
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Half Bridge
Supplier Device Package	22-PQFN (3.5x4.5)
Technology	Power MOSFET
Voltage	4.5V ~ 24V
