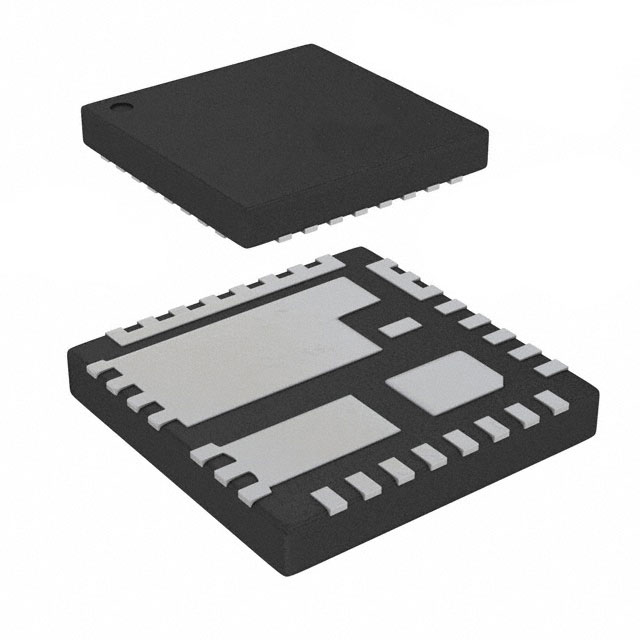

The FDMF3035 from On Semiconductor is a next-generation, ultra-compact Smart Power Stage (SPS) module. It is fully optimized for high-current, high-frequency synchronous buck DC-DC applications, integrating a driver IC, bootstrap Schottky diode, and two power MOSFETs into a thermally enhanced 5 mm x 5 mm PQFN package.
This module is designed for optimized driver and MOSFET dynamic performance, minimized system inductance, and low power MOSFET Rds(on). It utilizes onsemi's POWERTRENCH MOSFET technology for clean voltage waveforms and reduced ringing, and SyncFET technology with an integrated Schottky diode in the low-side MOSFET. The FDMF3035 supports diode emulation for improved light-load efficiency and features a 3-state 5 V PWM input for compatibility with various PWM controllers.
Key electrical specifications include a high current handling capability of 50 A, an operating voltage range of 4.5V to 24V, and an optimized switching frequency up to 1.5 MHz. The Rds(on) is typically 1 Ohm for both the high-side and low-side MOSFETs. Fault protection includes shoot-through and UVLO (Under-Voltage Lockout).
The FDMF3035 is housed in a 31-lead PQFN (5x5 mm) package, suitable for surface mounting. The operating junction temperature range is -40°C to 150°C. Applications include notebook, tablet PC, ultrabook, servers, workstations, desktop computers, and high-current DC-DC point-of-load converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FDMF3035 can handle a maximum current of 50 A.
The operating voltage range for the FDMF3035 is from 4.5V to 24V.
The typical Rds On is 1 Ohm for both the low-side (LS) and high-side (HS) MOSFETs.
The FDMF3035 is optimized for switching frequencies up to 1.5 MHz.
The FDMF3035 is supplied in a 31-PQFN (5x5 mm) package.
The operating junction temperature range for the FDMF3035 is -40°C to 150°C.
