| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,020,000 pcs
|
1020000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
301,000 pcs
|
301000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

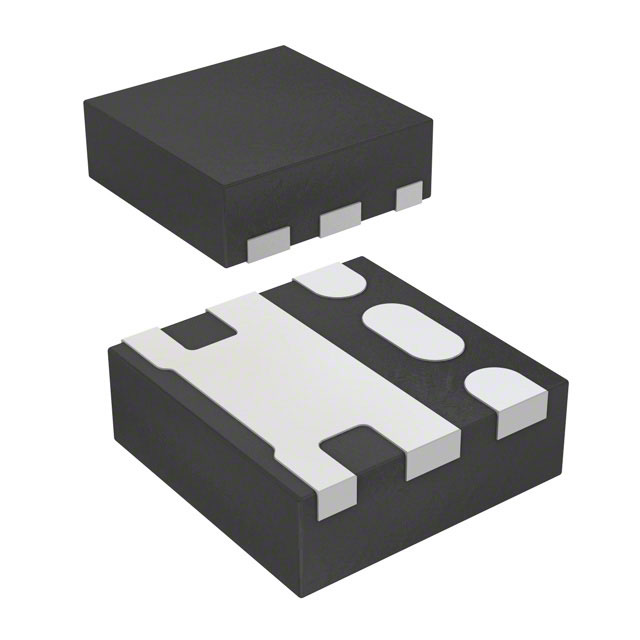

The FDME905PT is a P-Channel MOSFET from On Semiconductor designed for battery charging and load switching in portable devices. It offers a drain-source voltage rating of 12V and continuous drain current of 8A at 25°C. The device features low on-state resistance: 22mOhm at VGS=-4.5V, 26mOhm at VGS=-2.5V, and 97mOhm at VGS=-1.8V. Gate threshold voltage is 1V maximum at 250µA drain current. The MOSFET is housed in a MicroFET 1.6x1.6 Thin package (UDFN6) with surface mount mounting. It is Pb-free and RoHS compliant, and free from halogenated compounds. The device has a maximum power dissipation of 2.1W when mounted on a 1 in² pad of 2 oz copper, and 0.7W on minimum pad. Operating junction temperature range is -55°C to 150°C. Typical applications include battery charging circuits and load switches in cellular handsets and ultraportable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 10+ | $0.68 | $0.68 |
| 100+ | $0.44 | $0.44 |
| 500+ | $0.34 | $0.34 |
| 1,000+ | $0.28 | $0.28 |
| 5,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12V.
MicroFET 1.6x1.6 Thin (UDFN6).
-55°C to 150°C (junction).
Yes, it is RoHS3 compliant and Pb-free.
8A at 25°C.
22mOhm maximum at VGS=-4.5V, ID=-8A.
1V maximum at 250µA.
