| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
8,035 pcs
|
8035 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
3,408 pcs
|
3408 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,301 pcs
|
2301 pcs | On Request | 1 | On Request | On Request | 07+42 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMC8878 is an N-Channel MOSFET manufactured by On Semiconductor using advanced PowerTrench technology. It is designed to deliver efficient switching performance with a maximum drain-to-source voltage of 30V and continuous drain current ratings of 9.6A at ambient temperature and 16.5A at case temperature 25°C.
The device features a maximum on-resistance of 14mOhm at Vgs = 10V and Id = 9.6A, making it suitable for low-loss power management applications. The gate threshold voltage is up to 3V at Id = 250µA, and the gate drive voltages are specified at 4.5V and 10V for optimal Rds(on) performance.

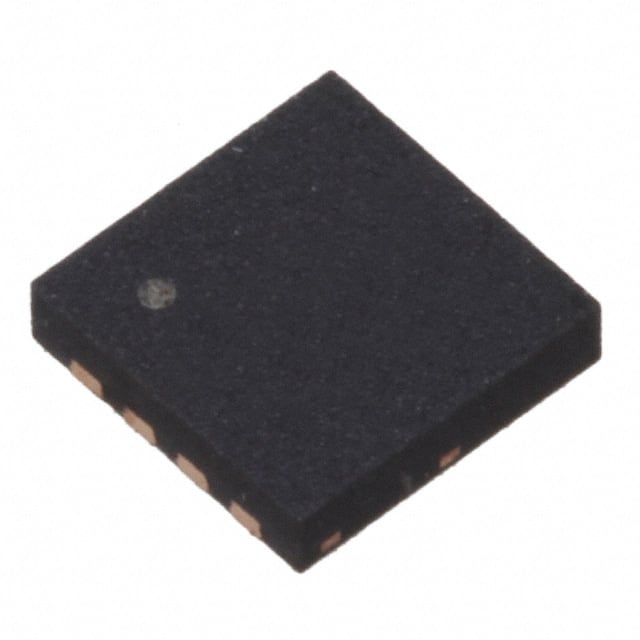

The FDMC8878 is supplied in an 8-PowerWDFN package with an industry-standard 8-MLP 3.3x3.3mm footprint, enabling compact PCB layouts. The operating junction temperature range is -55°C to 150°C. Maximum power dissipation is 2.1W at ambient temperature and 31W at case temperature 25°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 10+ | $1.22 | $1.22 |
| 100+ | $0.82 | $0.82 |
| 500+ | $0.65 | $0.65 |
| 1,000+ | $0.60 | $0.60 |
| 3,000+ | $0.53 | $0.53 |
| 6,000+ | $0.50 | $0.50 |
| 9,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 30 V.
The continuous drain current is 9.6 A at Ta = 25°C and 16.5 A at Tc = 25°C.
The maximum on-resistance is 14 mOhm at Vgs = 10 V and Id = 9.6 A.
The operating junction temperature range is -55°C to 150°C.
It comes in an 8-PowerWDFN package, also designated as 8-MLP (3.3x3.3 mm), for surface mount assembly.
Distributor data indicates RoHS3 compliance, but this information is unverified.
