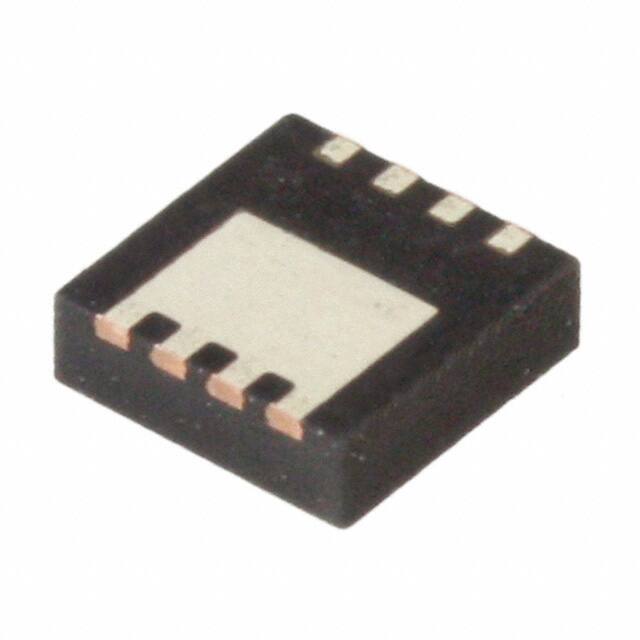

FDMC86244 N-Channel MOSFET with 150V drain-source voltage and 9.4A continuous current. Surface mount in 8-PowerWDFN package (8-MLP 3.3x3.3mm).
Mfr Part #:

FDMC86244

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
N-Channel MOSFET with 150V drain-source voltage and 9.4A continuous current. Surface mount in 8-PowerWDFN package (8-MLP 3.3x3.3mm).
✓ Total Stock: 39,610 pcs
$ Price Range: $0.66 - $1.94

FDMC86244 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
27,000 pcs
On Request
27000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
610 pcs
On Request
610 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMC86244 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDMC86244 Description

Short technical summary and product information.

This is an N-Channel MOSFET from onsemi with a drain-source voltage rating of 150V. It can handle continuous drain currents of 2.8A at ambient temperature and 9.4A at case temperature.



Features a maximum on-resistance of 134mΩ at 2.8A with 10V gate drive. Gate charge is 5.9nC at 10V, and input capacitance is 345pF at 75V, making it suitable for efficient switching applications.



Housed in a surface-mount 8-PowerWDFN package (supplier device package 8-MLP 3.3x3.3mm), operating junction temperature range is -55°C to 150°C. Power dissipation is 26W at case temperature. RoHS3 compliant.

FDMC86244 Quick Information

Product Type: Single MOSFET Transistor
Series: PowerTrench
Canonical Name: N-Channel MOSFET, 150V, 2.8A/9.4A, 8-PowerWDFN
Subcategory: N-Channel

FDMC86244 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FDMC86244 Estimated Pricing

Qty Low High
1+ $1.94 $1.94
10+ $1.24 $1.24
100+ $0.83 $0.83
500+ $0.66 $0.66
3,000+ $0.66 $0.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMC86244 Features

  • 150V drain-source voltage rating.
  • 9.4A continuous drain current at Tc.
  • Low gate charge of 5.9nC.
  • Surface mount 8-PowerWDFN package.
  • RoHS3 compliant.

FDMC86244 Applications

  • Used in DC-DC converter circuits.
  • Suitable for power management in portable devices.
  • Ideal for load switching applications.
  • Applicable in battery protection circuits.

FDMC86244 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the FDMC86244?

150V

What is the package type of the FDMC86244?

8-PowerWDFN surface mount package (8-MLP 3.3x3.3mm).

What is the operating temperature range?

-55°C to 150°C junction temperature.

Is the FDMC86244 RoHS compliant?

Yes, RoHS3 compliant.

What is the continuous drain current rating?

2.8A at ambient temperature, 9.4A at case temperature.

What is the on-resistance?

134mOhm maximum at 2.8A and 10V gate drive.

What is the gate charge?

5.9nC maximum at 10V gate-source voltage.
