| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,032,000 pcs
|
1032000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain Current (Maximum @ Tc) | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Power Dissipation (Maximum @ Tc) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

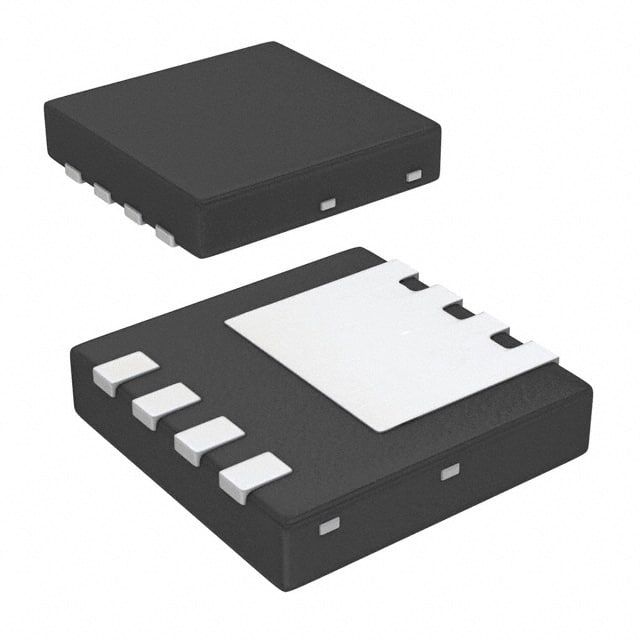

The FDMC8588 is an N-Channel MOSFET from On Semiconductor, designed for low-voltage power switching applications. It features a drain-source voltage rating of 25V and continuous drain current of 16.5A at ambient temperature or 40A at case temperature. The device offers a low on-resistance of 5mΩ at 10V gate drive, minimizing conduction losses.
With a gate charge of 12nC at 4.5V and input capacitance of 1228pF, the FDMC8588 is suitable for high-frequency switching. It operates over a junction temperature range of -55°C to 150°C.
The MOSFET is housed in a surface-mount 8-PowerTDFN package (Power33), enabling compact PCB layouts. The device is RoHS3 compliant and has MSL Level 1 for unlimited moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25V.
16.5A at ambient temperature and 40A at case temperature.
5mΩ maximum at 10V gate drive and 17A drain current.
-55°C to 150°C junction temperature.
Surface-mount 8-PowerTDFN (Power33).
12nC at 4.5V gate-source voltage.
It is listed as RoHS3 Compliant (unverified).
