Mfr Part #:

FDMC8032L

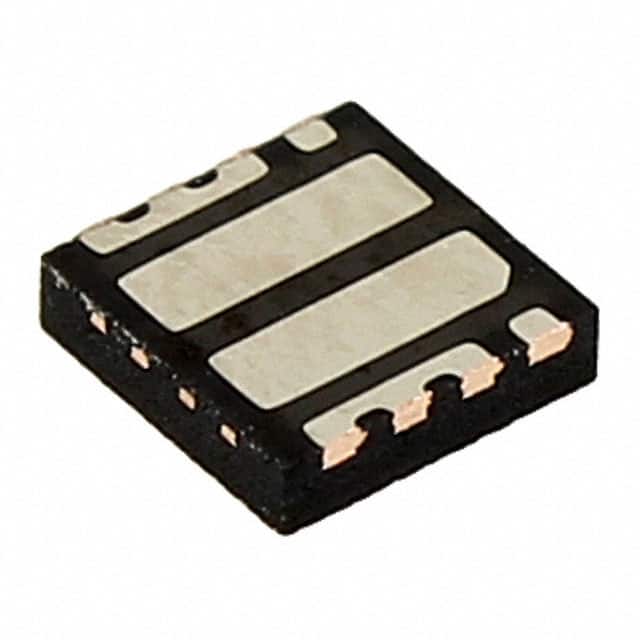

Dual N-Channel MOSFET from On Semiconductor with 40V drain-source voltage, 7A continuous current, and 20mΩ on-resistance. Housed in an 8-PowerWDFN surface-mount package.

✓ Total Stock: 190,470 pcs

$ Price Range: $0.32 - $1.62

FDMC8032L Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	189,000 pcs On Request	189000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,470 pcs On Request	1470 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FDMC8032L Description

Short technical summary and product information.

The FDMC8032L is a dual N-Channel MOSFET from On Semiconductor, designed for general-purpose switching applications. It features a maximum drain-source voltage of 40V and continuous drain current of 7A at 25°C ambient temperature (20A at case temperature). The device offers a low on-resistance of 20mΩ typical at VGS=10V, ID=7A, making it suitable for efficient power management.

This MOSFET is built with PowerTrench technology and includes logic-level gate drive capability, allowing direct interfacing with low-voltage control signals. The dual configuration integrates two independent N-Channel MOSFETs in a single package, saving board space in applications such as battery protection and load switching.

The device is housed in an 8-PowerWDFN (Power 33) surface-mount package measuring 3mm x 3mm, with a junction-to-ambient thermal resistance of 65°C/W. It is RoHS3 compliant and Pb-free, suitable for lead-free soldering processes. The operating junction temperature range is -55°C to 150°C.

FDMC8032L Quick Information

Product Type: MOSFET Array

Canonical Name: Dual N-Channel MOSFET, 40V, 7A, 20mΩ, 8-PowerWDFN

Subcategory: Dual N-Channel

FDMC8032L Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb-Free

FDMC8032L Estimated Pricing

Qty	Low	High
1+	$1.62	$1.62
10+	$1.03	$1.03
100+	$0.69	$0.69
500+	$0.54	$0.54
1,000+	$0.49	$0.49
3,000+	$0.32	$0.32
6,000+	$0.41	$0.41
9,000+	$0.39	$0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMC8032L Features

Dual N-Channel MOSFET in single package.
40V drain-source voltage rating.
7A continuous drain current at 25°C.
Low on-resistance: 20mΩ at 10V gate drive.
Logic-level gate threshold for 3V drive.

FDMC8032L Applications

Used in battery protection circuits.
Ideal for load switching applications.
Suitable for point-of-load converters.

FDMC8032L FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the FDMC8032L?

-55°C to 150°C (junction temperature).

Is the FDMC8032L RoHS compliant?

Yes, it is RoHS3 compliant and Pb-free.

What package does the FDMC8032L come in?

8-PowerWDFN (Power 33) surface-mount package.

What is the maximum drain-source voltage?

40V.

What is the continuous drain current rating?

7A at 25°C ambient temperature, 20A at case temperature.

What is the on-resistance of the FDMC8032L?

Maximum 20mΩ at VGS=10V, ID=7A; typical 16mΩ.

What is the gate charge of the FDMC8032L?

Typical 11nC at VGS=10V.

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	On Semiconductor
Configuration	2 N-Channel (Dual)
Current	7 A
Drain to Source Voltage (Vdss)	40 V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	11 nC
Input Capacitance (Ciss) (Max) @ Vds	720 pF
Lead Style	Smd
Mounting Type	Surface Mount
Operating Temperature	-55°C to 150°C (TJ)
Power	1.9 W
Rds On (Max) @ Id, Vgs	20mOhm @ 7A, 10V
Supplier Device Package	8-Power33 (3x3)
Tape & Reel	Yes
Tape Width	12 mm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.0 V / 1.8 V / 3.0 V
