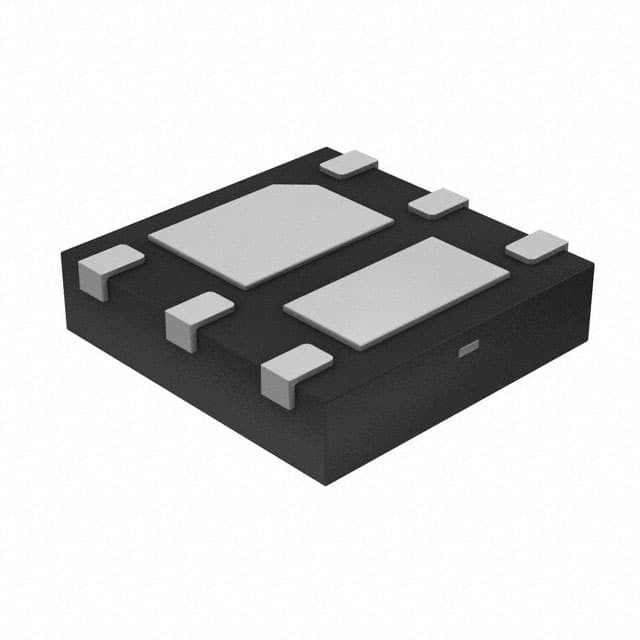

The FDMC6890NZ from onsemi is a dual N-channel PowerTrench MOSFET designed for compact DC-DC converter solutions. It integrates two N-channel MOSFETs in a single Power33 package, providing excellent thermal and switching characteristics. The device is rated for a drain-source voltage of 20V and a continuous drain current of 4A, with a pulsed drain current capability of 10A.
Key electrical specifications include a maximum on-resistance of 68mΩ for Q1 at VGS=4.5V and ID=4A, and 100mΩ for Q2 at the same conditions. The device also features low gate charge (3.4nC max at VGS=4.5V) and low input capacitance (270pF max), contributing to high switching efficiency. The Q1 switch integrates gate protection against unclamped voltage input.
The FDMC6890NZ is housed in a 6-WDFN exposed pad package (MicroFET 3x3mm) and is surface mountable. It is Pb-free, Halide free, and RoHS compliant, making it suitable for environmentally conscious designs. The operating junction temperature range is -55°C to +150°C.
| Qty | Low | High |
|---|---|---|
| 505+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (VDS) is 20V for both Q1 and Q2.
The continuous drain current (ID) is 4A for both Q1 and Q2.
The maximum on-resistance for Q1 is 68mΩ at VGS=4.5V and ID=4A.
The FDMC6890NZ is available in a 6-WDFN exposed pad package (MicroFET 3x3mm) for surface mount.
The operating junction temperature range is -55°C to +150°C.
Yes, the FDMC6890NZ is RoHS3 compliant and Pb-free as per the datasheet.
