| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
385,337 pcs
|
385337 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,286 pcs
|
8286 pcs | On Request | 1 | On Request | On Request | 21 | On Request | On Request | |
|
1,574 pcs
|
1574 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,027 pcs
|
1027 pcs | On Request | 1 | On Request | On Request | 1851+ | On Request | On Request | |
|
476 pcs
|
476 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMC4435BZ is a P-Channel PowerTrench MOSFET from onsemi designed for power management and load switching applications. It features a drain-source voltage rating of 30V and a continuous drain current of 18A at case temperature 25°C. The device achieves a maximum on-resistance of 20mΩ at VGS = -10V and ID = -8.5A, and 37mΩ at VGS = -4.5V and ID = -6.3A.

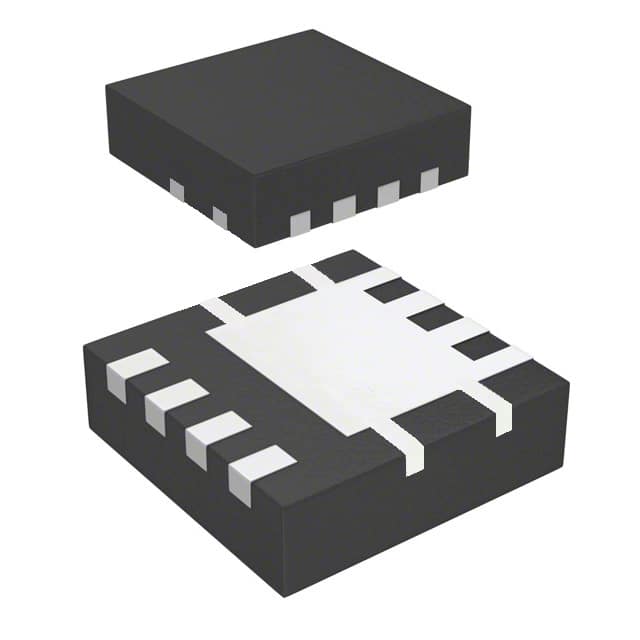

This MOSFET is housed in an 8-PowerWDFN surface-mount package with a supplier device package of 8-MLP (3.3x3.3). It offers an extended gate-source voltage range of ±25V suitable for battery applications. The device includes ESD protection greater than 7kV typical (HBM) and is 100% UIL tested. It is RoHS compliant and Pb-free.
Typical applications include high-side DC-DC buck converters, notebook battery power management, and load switching in portable electronics. The device is well-suited for designs requiring efficient power distribution and battery protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.74 | $1.74 |
| 10+ | $1.11 | $1.11 |
| 100+ | $0.74 | $0.74 |
| 3,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 30V.
The maximum continuous drain current is 18A at case temperature 25°C and 8.5A at ambient temperature 25°C.
The maximum on-resistance is 20mΩ at VGS = -10V and ID = -8.5A, and 37mΩ at VGS = -4.5V and ID = -6.3A.
It is available in an 8-PowerWDFN surface-mount package, supplier device package 8-MLP (3.3x3.3).
The operating junction temperature range is -55°C to 150°C.
Yes, the device is RoHS3 compliant and Pb-free.
