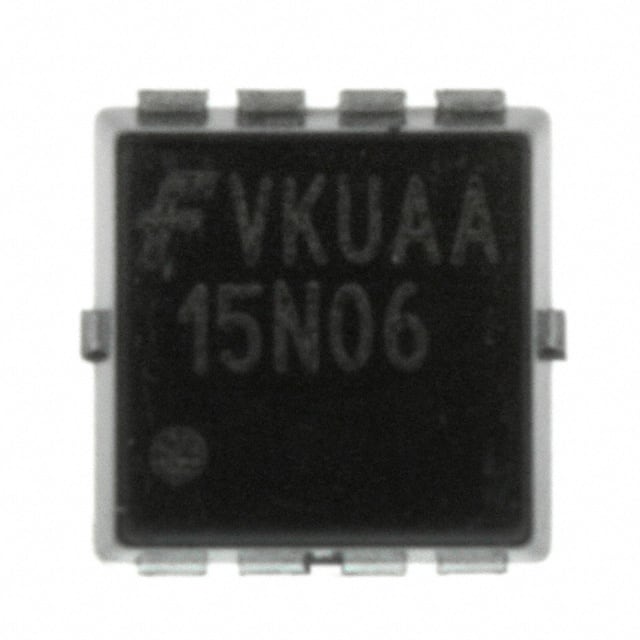

The FDMC15N06 is an N-Channel power MOSFET manufactured by On Semiconductor using the innovative UltraFET process. This process achieves low on-resistance per silicon area, enabling high efficiency in power conversion applications. The device is rated for a maximum drain-source voltage of 55V and can handle a continuous drain current of 15A at a case temperature of 25°C (2.4A at ambient temperature). It features a typical on-resistance of 75 mOhm at VGS=10V and ID=15A, with a maximum gate charge of 11.5 nC. The input capacitance is 350 pF maximum at VDS=25V.
Designed for power-sensitive applications, the FDMC15N06 is suitable for switching regulators, DC-DC converters, motor drivers, relay drivers, low voltage bus switches, and power management in portable and battery-operated devices. It is 100% avalanche tested and can withstand a single pulse avalanche energy of 36 mJ. The device has a maximum power dissipation of 35W at Tc=25°C and operates over a junction temperature range of -55°C to 150°C.
The MOSFET is housed in an 8-PowerWDFN surface mount package (supplier device package 8-MLP 3.3x3.3mm) and is supplied in tape and reel packaging with 3000 pieces per reel. It is Pb-Free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.65 | $2.65 |
| 10+ | $1.70 | $1.70 |
| 100+ | $1.16 | $1.16 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.89 | $0.89 |
| 3,000+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
55V maximum.
Surface mount 8-PowerWDFN, supplier device package 8-MLP (3.3x3.3).
-55°C to 150°C (junction temperature).
Yes, it is RoHS compliant and Pb-Free.
15A maximum.
75 mOhm typical at VGS=10V, ID=15A.
11.5 nC maximum at VGS=10V.
