| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,235 pcs
|
1235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDMC007N08LC is an N-Channel MOSFET manufactured by On Semiconductor using advanced POWERTRENCH Shielded Gate technology. This process minimizes on-state resistance while maintaining superior switching performance with a low soft body diode Qrr.
Key electrical specifications include a drain-source voltage rating of 80 V, continuous drain current of 66 A at Tc = 25°C, and a maximum Rds(on) of 7 mOhm at Vgs = 10 V and Id = 21 A. The device supports 5 V gate drive and features a maximum gate threshold voltage of 2.5 V. Gate charge is 41 nC at 10 V, and input capacitance is 2940 pF at 40 V. Power dissipation is rated at 57 W at Tc = 25°C.

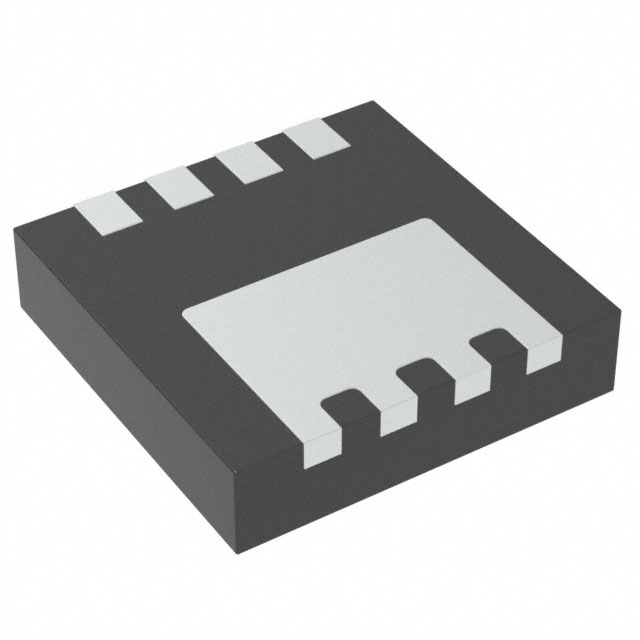

The MOSFET is housed in an 8-PowerWDFN surface-mount package, also known as 8-PQFN (3.3x3.3 mm) Power33. It operates over a junction temperature range of -55°C to +150°C. The device is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity level.
Typical applications include primary DC-DC converters, synchronous rectifiers in DC-DC and AC-DC circuits, motor drives, and solar power systems. The part is 100% UIL tested and designed for low switching noise and EMI.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.21 | $3.21 |
| 10+ | $2.09 | $2.09 |
| 100+ | $1.44 | $1.44 |
| 500+ | $1.28 | $1.28 |
| 3,000+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is 80 V.
It is available in an 8-PowerWDFN package, also referred to as 8-PQFN (3.3x3.3 mm) Power33.
The operating junction temperature range is -55°C to +150°C.
The device is listed as RoHS3 compliant, though this information is unverified from a direct source.
The continuous drain current is 66 A at Tc = 25°C.
The maximum gate charge (Qg) is 41 nC at Vgs = 10 V.
