FDMA6676PZ FDMA6676PZ is a P-Channel PowerTrench MOSFET from On Semiconductor. It features a 30V drain-source voltage, 11A continuous drain current, and ultra-low 13.5mΩ on-resistance.
Mfr Part #:

FDMA6676PZ

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
FDMA6676PZ is a P-Channel PowerTrench MOSFET from On Semiconductor. It features a 30V drain-source voltage, 11A continuous drain current, and ultra-low 13.5mΩ on-resistance.
✓ Total Stock: 3,661 pcs
$ Price Range: $0.39

FDMA6676PZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,661 pcs
On Request
3661 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDMA6676PZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

FDMA6676PZ Description

Short technical summary and product information.

The FDMA6676PZ is an ultra-low resistance P-Channel PowerTrench MOSFET designed for power line load switching and reverse polarity protection. It is optimized for voltage rails up to 25V, making it ideal for laptop computers, tablets, and mobile phones. Applications include battery protection, input power line protection, and charge path protection including USB and other charge paths.



The device features a maximum drain-source voltage of -30V and continuous drain current of -11A at 25°C ambient. The on-resistance is a maximum of 13.5mΩ at Vgs=-10V and Id=-11A. It has an extended gate-source voltage rating of ±25V, simplifying gate drive design and eliminating the need for external Zener protection in reverse polarity applications.

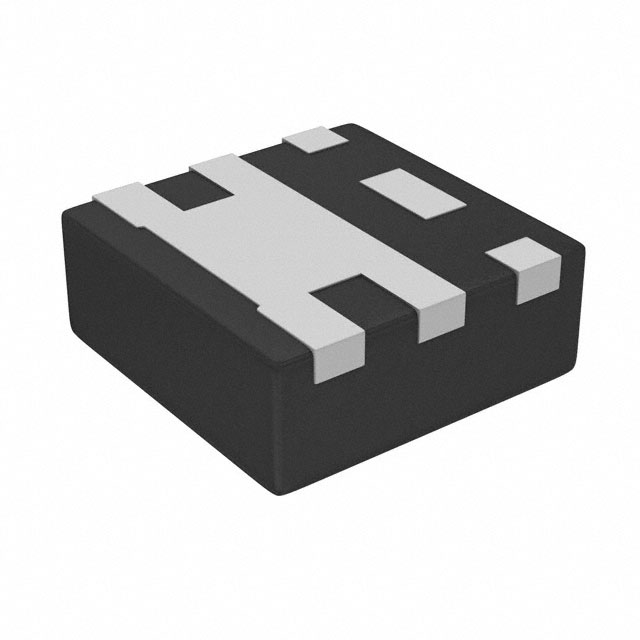

The FDMA6676PZ is housed in a compact 6-PowerWDFN package (2x2mm, 0.8mm max height), suitable for space-constrained designs. It is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free. The device also includes an integrated protection diode.

FDMA6676PZ Quick Information

Product Type: P-Channel MOSFET
Series: PowerTrench
Canonical Name: FDMA6676PZ - P-Channel MOSFET, 30V, 11A, 13.5mΩ, 6-PowerWDFN
Subcategory: Single MOSFET

FDMA6676PZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

FDMA6676PZ Estimated Pricing

Qty Low High
3,000+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDMA6676PZ Features

  • Ultra-low 13.5mΩ on-resistance at 10V.
  • Extended ±25V gate-source voltage rating.
  • 30V drain-source blocking voltage.
  • Compact 2x2mm PowerWDFN package.
  • RoHS3 compliant and halogen free.

FDMA6676PZ Applications

  • Power line load switching applications.
  • Reverse polarity protection circuits.
  • Battery protection in portable devices.
  • USB and charge path protection.
  • Input power line protection.

FDMA6676PZ FAQs

7 frequently asked questions generated from this part’s specifications.
What are the voltage ratings for the FDMA6676PZ?

Drain-source voltage: -30V; gate-source voltage: ±25V.

What package does the FDMA6676PZ come in?

The FDMA6676PZ is available in a 6-PowerWDFN package (2x2mm), also known as 6-MicroFET.

What is the operating temperature range of the FDMA6676PZ?

The operating temperature range is -55°C to 150°C (junction).

Is the FDMA6676PZ RoHS compliant?

Yes, the FDMA6676PZ is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free.

What is the on-resistance of the FDMA6676PZ?

The maximum on-resistance is 13.5mΩ at Vgs=-10V and Id=-11A.

What is the maximum drain current of the FDMA6676PZ?

The continuous drain current is -11A at 25°C ambient, with a pulsed current rating of -165A.

What is the gate charge of the FDMA6676PZ?

The maximum gate charge is 46nC at Vgs=-10V.
