| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,774 pcs
|
2774 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
208 pcs
|
208 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Configuration | |
| Conflict Minerals | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| FET Feature | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |
The FDMA6023PZT is a dual P-Channel MOSFET from On Semiconductor, configured as two independent P-Channel MOSFETs in a single package. It features a maximum drain-source voltage of 20V and a continuous drain current of 3.6A. The on-resistance is typically 60mOhm at Vgs=4.5V and Id=3.6A, making it suitable for low-power switching applications.
The device utilizes advanced MOSFET technology with a logic level gate, allowing direct drive from low-voltage logic circuits. The gate charge is 17nC at Vgs=4.5V, and input capacitance is 885pF at Vds=10V, indicating moderate switching speeds. The maximum gate threshold voltage is 1.5V at Id=250µA.

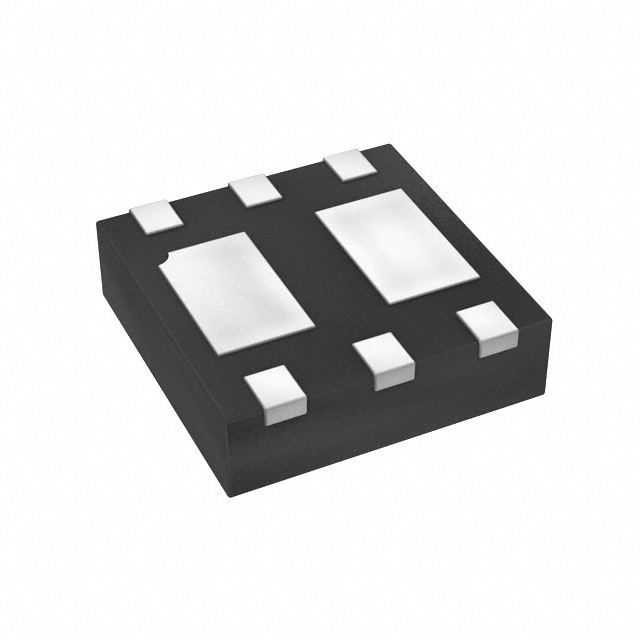

This MOSFET is housed in a compact 6-UDFN exposed pad package, also known as 6-MicroFET (2x2mm), which provides efficient thermal dissipation. The operating junction temperature range is -55°C to 150°C, with a maximum power dissipation of 700mW. The device is surface mountable and RoHS3 compliant, with a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 565+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 20V.
It is available in a 6-UDFN Exposed Pad package, also known as 6-MicroFET (2x2).
The operating junction temperature range is -55°C to 150°C.
The device is listed as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.
It contains two P-Channel MOSFETs in a dual configuration.
The maximum continuous drain current is 3.6A.
The maximum on-resistance is 60mOhm at Vgs=4.5V and Id=3.6A.
