| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,777 pcs
|
8777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The FDI3632 is an N-Channel PowerTrench MOSFET designed for high-efficiency power conversion and automotive applications. It offers a drain-source breakdown voltage of 100V and a continuous drain current of 80A at case temperature 111°C (12A at ambient 25°C). The device features a typical on-resistance of 7.5mOhm and maximum of 9mOhm at VGS = 10V, enabling low conduction losses.
This MOSFET is qualified to AEC-Q101, meeting the rigorous reliability standards of the automotive industry. It incorporates low Miller charge and low Qrr body diode for improved switching performance. The device is capable of handling single pulse avalanche energy up to 393mJ, making it robust for harsh environments.

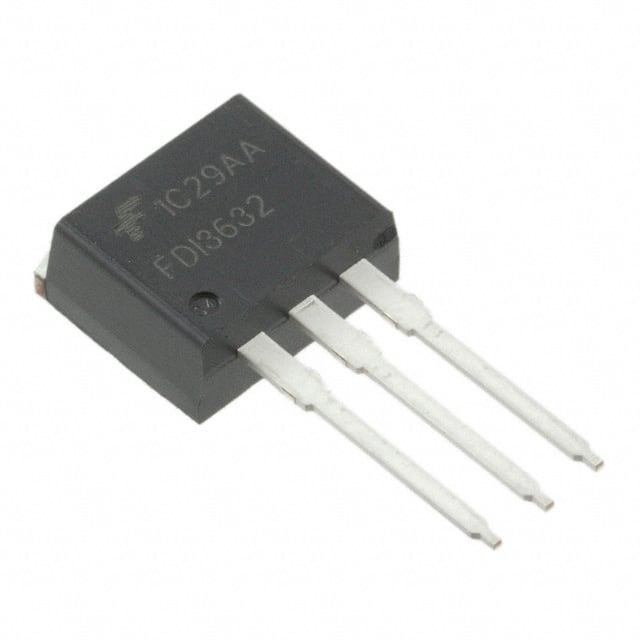

The FDI3632 is housed in a through-hole TO-262-3 (I2PAK) package, suitable for PCB mounting with excellent thermal dissipation. Thermal resistance junction-to-case is 0.48°C/W and junction-to-ambient is 62°C/W for the TO-262 package. Operating temperature range is -55°C to 175°C.
Typical applications include DC/DC converters, off-line UPS, primary switches for 24V and 48V systems, high voltage synchronous rectifiers, and automotive systems such as direct injection and electronic valve train control.
The drain-source breakdown voltage is 100V minimum.
It is available in a TO-262-3 (I2PAK) through-hole package.
The operating junction temperature range is -55°C to 175°C.
Yes, it is RoHS compliant per datasheet statement.
80A at case temperature 111°C (VGS=10V) and 12A at ambient temperature 25°C.
Typical on-resistance is 7.5mOhm at VGS=10V and ID=80A.
Yes, it is qualified to AEC-Q101 for automotive applications.
