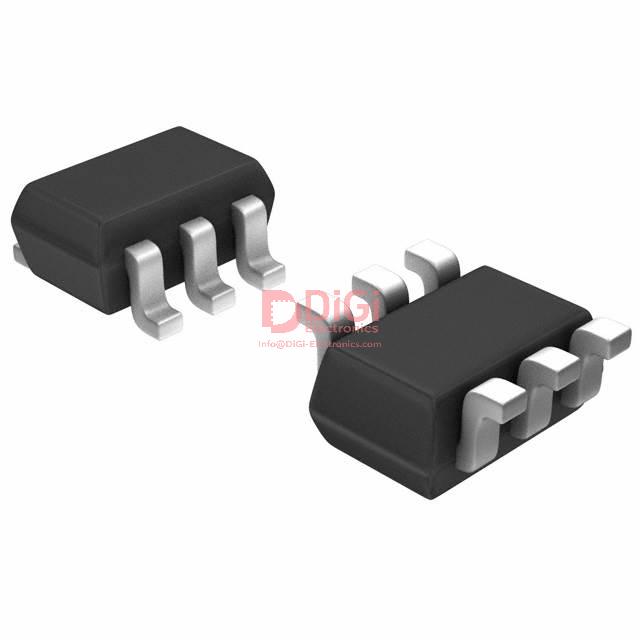

FDG6301N_F085 The On Semiconductor FDG6301N-F085 is a dual N-channel MOSFET with a 25V drain-source voltage and 220mA continuous drain current. It is supplied in an SC88 surface-mount package.
Mfr Part #:

FDG6301N_F085

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FDG6301N-F085 is a dual N-channel MOSFET with a 25V drain-source voltage and 220mA continuous drain current. It is supplied in an SC88 surface-mount package.
✓ Total Stock: 301,114 pcs
$ Price Range: $0.99

FDG6301N_F085 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
301,000 pcs
On Request
301000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
114 pcs
On Request
114 pcs On Request 1 On Request On Request 1442 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDG6301N_F085 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Configuration
Gate Charge
Lead Style
Mounting Type
SVHC Present
Tape & Reel
Technology
View Similar Products (0)

FDG6301N_F085 Description

Short technical summary and product information.

The FDG6301N-F085 from On Semiconductor is a dual N-channel MOSFET designed for various electronic applications. This component features a maximum drain-source voltage (Vdss) of 25V and a continuous drain current (Id) of 220mA at 25°C. Its on-resistance (Rds On) is a maximum of 4 Ohms when tested at 220mA and 4.5V gate-source voltage.



The MOSFET has a logic-level gate feature, making it suitable for low-voltage control applications. The gate threshold voltage (Vgs(th)) is a maximum of 1.5V at 250µA, and the gate charge (Qg) is a maximum of 0.4nC at 4.5V.



This device is housed in an SC88 surface-mount package, facilitating integration into compact circuit designs. The technology utilized is Metal Oxide Semiconductor Field-Effect Transistor (MOSFET).



Key electrical characteristics include a 25V drain-to-source breakdown voltage and a 220mA continuous drain current. The device is configured as two N-channel MOSFETs within a single package.

FDG6301N_F085 Quick Information

Product Type: MOSFET Array
Series: FDG6301N
Canonical Name: FDG6301N-F085 Dual N-Channel MOSFET
Subcategory: FET, MOSFET Arrays

FDG6301N_F085 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FDG6301N_F085 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDG6301N_F085 Features

  • Dual N-channel MOSFET configuration.
  • 25V drain-to-source voltage rating.
  • 220mA continuous drain current.
  • Logic-level gate feature.
  • SC88 surface-mount package.

FDG6301N_F085 Applications

  • Suitable for low-voltage switching.
  • Ideal for power management circuits.
  • Used in portable electronic devices.
  • Applicable for signal switching.

FDG6301N_F085 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the FDG6301N_F085?

The maximum drain-to-source voltage is 25V.

What is the continuous drain current rating?

The continuous drain current at 25°C is 220mA.

What is the on-resistance of this MOSFET?

The maximum on-resistance is 4 ohm at a drain current of 220mA and gate-source voltage of 4.5V.

What is the gate threshold voltage?

The maximum gate threshold voltage is 1.5V at a drain current of 250µA.

What is the gate charge of the FDG6301N_F085?

The maximum gate charge is 0.4nC at a gate-source voltage of 4.5V.

What package is the FDG6301N_F085 available in?

The FDG6301N_F085 comes in an SC88 surface-mount package.

Is this a logic-level MOSFET?

Yes, it features a logic-level gate, allowing direct drive from low-voltage logic circuits.
