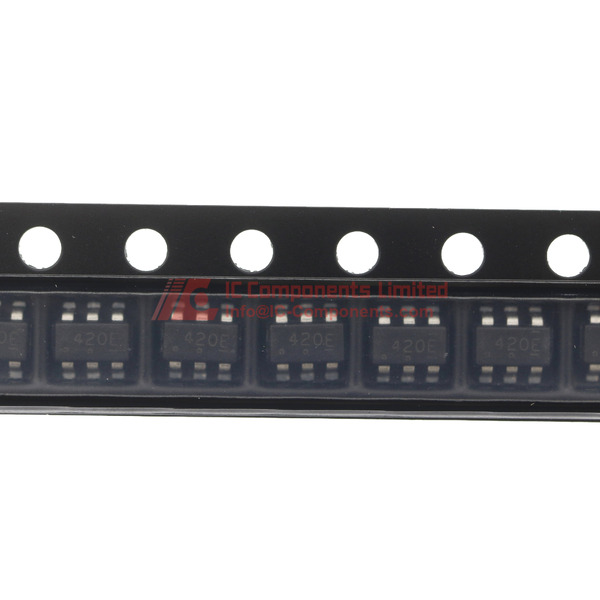

FDC6901L The FDC6901L is an integrated load switch from ON Semiconductor, designed for power management applications. It features a P-Channel MOSFET with a supply voltage range of 2.7V to 6V and a current handling capability of 3A.
Mfr Part #:

FDC6901L

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FDC6901L is an integrated load switch from ON Semiconductor, designed for power management applications. It features a P-Channel MOSFET with a supply voltage range of 2.7V to 6V and a current handling capability of 3A.
✓ Total Stock: 200,000 pcs
$ Price Range: $0.32

FDC6901L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FDC6901L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Tape & Reel
Voltage
View Similar Products (0)

FDC6901L Description

Short technical summary and product information.

The FDC6901L is an integrated load switch IC manufactured by ON Semiconductor, suitable for compact power management in portable electronic equipment requiring 2.5V to 6V input capability. This device integrates a slew rate control driver with a P-Channel Power MOSFET in a compact SuperSOT™-6 package.



The integrated slew rate control driver is specifically designed to manage the turn-on characteristics of the P-Channel MOSFET, effectively limiting inrush current in applications with high capacitance loads. For turn-off, the IC rapidly pulls the MOSFET gate high. The device operates over a wide voltage range and utilizes high-performance trench technology for extremely low RDS(ON).



Key electrical specifications include a supply voltage range of 2.7V to 6V and a nominal current rating of 3A. The typical Rds On is 105mOhm. The operating junction temperature range is -55°C to 150°C. The FDC6901L is available in a SOT-23-6 Thin, TSOT-23-6 package, suitable for surface mounting.



This load switch is particularly suited for applications such as general-purpose load switching and power management, offering features like slew rate control and a non-inverting interface.

FDC6901L Quick Information

Product Type: Integrated Load Switch
Canonical Name: FDC6901L Integrated Load Switch
Subcategory: Power Distribution Switches

FDC6901L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FDC6901L Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

FDC6901L Features

  • P-Channel power distribution switch.
  • Operates from 2.7V to 6V supply voltage.
  • Supports continuous 3A load current.
  • Typical on-resistance of 105mΩ.
  • Slew rate controlled for reduced EMI.

FDC6901L Applications

  • Ideal for power management.
  • Suitable for portable electronics.
  • Used in battery switching applications.
  • Load switch functionality.

FDC6901L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FDC6901L?

2.7V to 6V.

What is the package type of the FDC6901L?

SuperSOT-6 (also known as SOT-23-6 Thin or TSOT-23-6).

What is the operating junction temperature range?

-55°C to 150°C.

What is the output type of the FDC6901L?

P-Channel.

What is the continuous current rating?

3A.

What is the gate threshold voltage range?

-0.6V to -1.5V (typical -1V).

Does the FDC6901L have slew rate control?

Yes, it features slew rate controlled switching.
